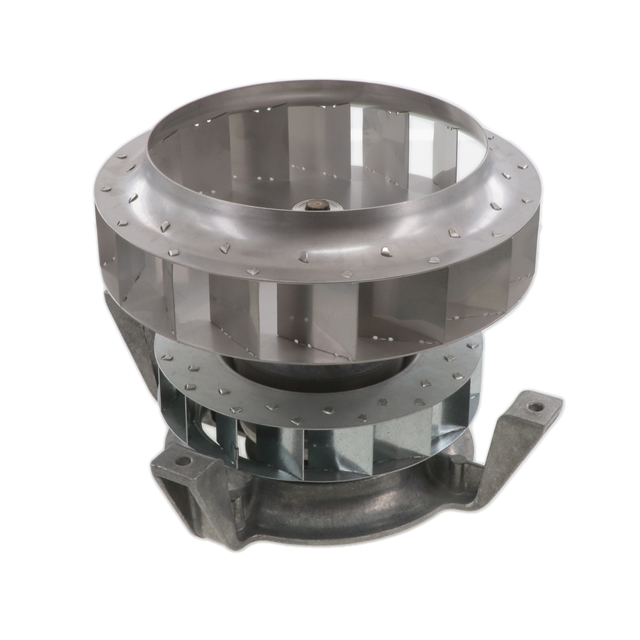

Specification	R2E225-AG01-21

Approval Agency	CE, UL, CSA
Bearing Type	Ball
Current Rating	1.25 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP20
Material - Blade	Steel
Operating Temperature (Max)	122 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	285 W
RPM	2800 RPM
Size / Dimension Diameter	270 mm
Size / Dimension Shape	Round
Termination	3 Wire Leads with Splice Terminals
Termination Leads Count	3
Termination Type	Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width	186 mm

R2E225 Series

Part	Material - Blade	Power (Watts)	Width	Voltage - Rated	Air Flow	Fan Type	Bearing Type	Noise	Size / Dimension Diameter	Size / Dimension Shape	Ingress Protection	Termination Leads Count	Termination Type	Termination	RPM	Operating Temperature (Min)	Operating Temperature (Max)	Approval Agency	Features	Current Rating	Weight	Material - Frame	Voltage Range (Min)	Voltage Range (Max)
ebm-papst Inc. R2E225-BE51-13	Nylon 6/6 PA66 Polyamide	185 W	135 mm	115 V	756 CFM	Motorized Impellers	Ball	75 dB	225 mm	Round
ebm-papst Inc. R2E225-BD92-09	Fiberglass Reinforced Nylon 6 PA6 Polyamide	200 W	99 mm	230 VAC		Motorized Impellers	Ball		225 mm	Round	IP44	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	2950 RPM	-13 °F	131 °F	CCC EAC	Capacitor Thermal Overload Protector (TOP)	880 mA
ebm-papst Inc. R2E225-BD92-19	Fiberglass Reinforced Nylon 6 PA6 Polyamide	200 W	28 mm	230 VAC			Ball		223 mm	Round	IP44	7	Wire Leads	7 Wire Leads	2950 RPM	-13 °F	131 °F	CCC CSA UL	Capacitor Thermal Overload Protection (TOP)	1.2 A	5 lbs
ebm-papst Inc. R2E225-AT51-05		145 W		230 VAC		Motorized Impellers	Ball		225 mm	Round	IP44	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	2950 RPM	-13 °F	131 °F	CCC CE EAC	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R2E225-RA92-09	Fiberglass Reinforced Nylon 6 PA6 Polyamide	210 W	99 mm	230 VAC	415.2 CFM	Motorized Impellers	Ball		225 mm	Round	IP44	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	2600 RPM	-13 °F	149 °F	CCC CE EAC	Capacitor Thermal Overload Protector (TOP)	0.92 A
ebm-papst Inc. R2E225-RA40-21	Fiberglass Reinforced Nylon PA Polyamide	225 W	99 mm	115 V	788.7 CFM	Motorized Impellers	Ball	76 dB	225 mm	Round	IP44	4 leads	Wire Leads	4 Wire Leads	2700 RPM	-13 °F	104 °F	UL			5 lbs	Polybutylene Terephthalate (PBT)	100 VAC	130 V
ebm-papst Inc. R2E225-BE47-19	Nylon PA Polyamide	185 W	107 mm	230 VAC		Motorized Impellers	Ball		225 mm	Round	IP44	3 leads 4 leads	Wire Leads with Splice Terminals	3 Wire Leads with Splice Terminals 4 Wire Leads with Splice Terminals	3000 RPM	-13 °F	131 °F	CE CSA UL	Capacitor Thermal Overload Protector (TOP)	0.81 A
ebm-papst Inc. R2E225-AG01-21	Steel	285 W	186 mm	230 VAC		Motorized Impellers	Ball		270 mm	Round	IP20	3	Wire Leads with Splice Terminals	3 Wire Leads with Splice Terminals	2800 RPM	-13 °F	122 °F	CE CSA UL	Capacitor Thermal Overload Protector (TOP)	1.25 A
ebm-papst Inc. R2E225-AT51-20
ebm-papst Inc. R2E225-AX52-20	Nylon PA Polyamide	165 W	75.3 mm	230 VAC		Motorized Impellers	Ball		225 mm	Round	IP44	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	3000 RPM	-13 °F	104 °F	CCC CSA UL	Capacitor Thermal Overload Protector (TOP)	0.72 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

R2E225-AG01-21 | Datasheet
