M2025B2B1W03

Obsolete

NKK Switches

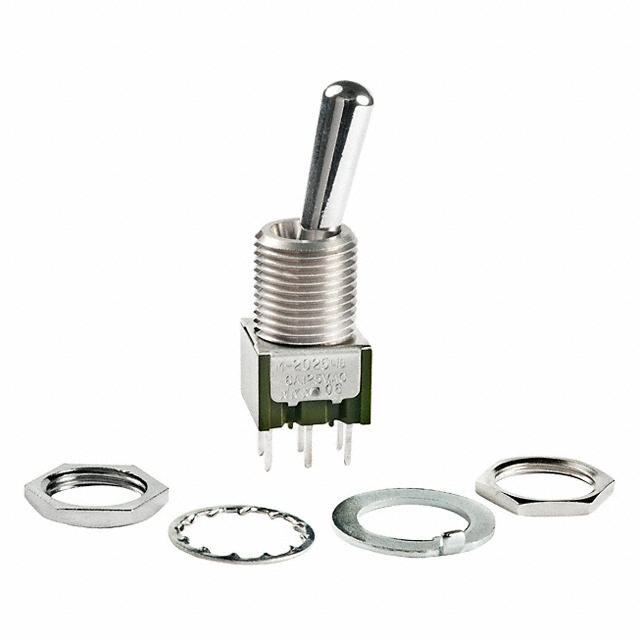

SWITCH TOGGLE ON NONE (ON) DPDT LARGE BAT LEVER PC PINS 6A 250VAC 30VDC PC MOUNT WITH THREADS

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE ON NONE (ON) DPDT LARGE BAT LEVER PC PINS 6A 250VAC 30VDC PC MOUNT WITH THREADS

Technical Specifications

Parameters and characteristics for this part

Specification	M2025B2B1W03

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Illumination	Switch Function	Voltage Rating - DC	Actuator Material	Circuit	Actuator Type	Current Rating (Amps)	Electrical Life	Bushing Thread	Bushing Thread	Actuator Length [x]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Panel Cutout Dimensions [diameter]	Features
NKK Switches M2025B2B1W01-AT401S	Non-Illuminated	On-Mom	30 V	Brass Chrome Plated	DPDT	Standard Round	3 A 6 A	25000 Steps	M12	1 x 1	17.5 mm	125 V	-30 ░C	85 °C	Solder Lug	12.5 mm
NKK Switches M2025B2B1W01-AT401A	Non-Illuminated	On-Mom	30 V	Brass Chrome Plated	DPDT	Standard Round	3 A 6 A	25000 Steps	M12	1 x 1	17.5 mm	125 V	-30 ░C	85 °C	Solder Lug	12.5 mm
NKK Switches M2025B2B1W03	Non-Illuminated	On-Mom	30 V	Brass Chrome Plated	DPDT	Standard Round	3 A 6 A	25000 Steps	M12	1 x 1	17.5 mm	125 V	-30 ░C	85 °C	PC Pin	12.5 mm	Epoxy Sealed Terminals
NKK Switches M2025B2B1W01	Non-Illuminated	On-Mom	30 V	Brass Chrome Plated	DPDT	Standard Round	3 A 6 A	25000 Steps	M12	1 x 1	17.5 mm	125 V	-30 ░C	85 °C	Solder Lug	12.5 mm	Epoxy Sealed Terminals
