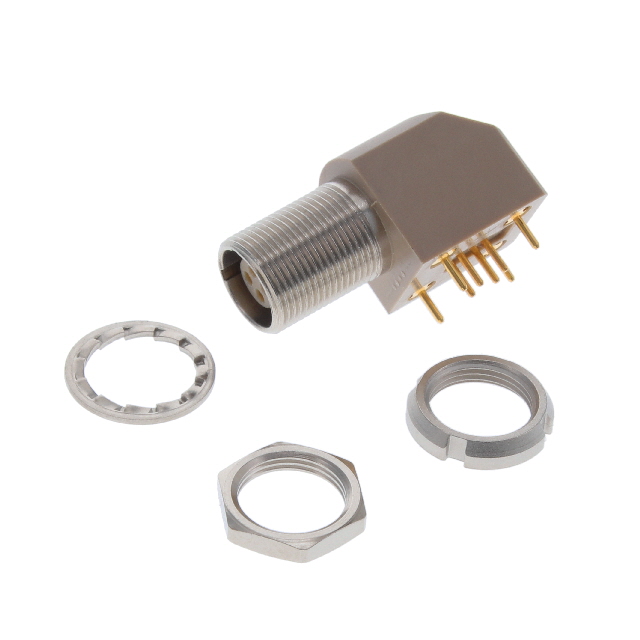

EXC.0B.304.HLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EXC.0B.304.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Mounting Feature	Fastening Type	Insert Material	Material Flammability Rating	Orientation	Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Connector Type	Contact Finish - Mating	Primary Material	Shell Size - Insert	Termination	Shell Material	Current Rating (Amps)	Number of Positions
LEMO EXC.0B.304.HLN	Bulkhead - Front Side Nut	Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	C	Brown, Silver	Bronze	59 Áin	1.5 Ám	Nickel	IP50	Panel Mount, Right Angle, Through Hole	-55 °C	250 °C	Shielded	Ground	Receptacle, Female Sockets	Gold	Metal	304	Solder	Brass and Polyphenylene Sulfide (PPS)	4.5 A	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
