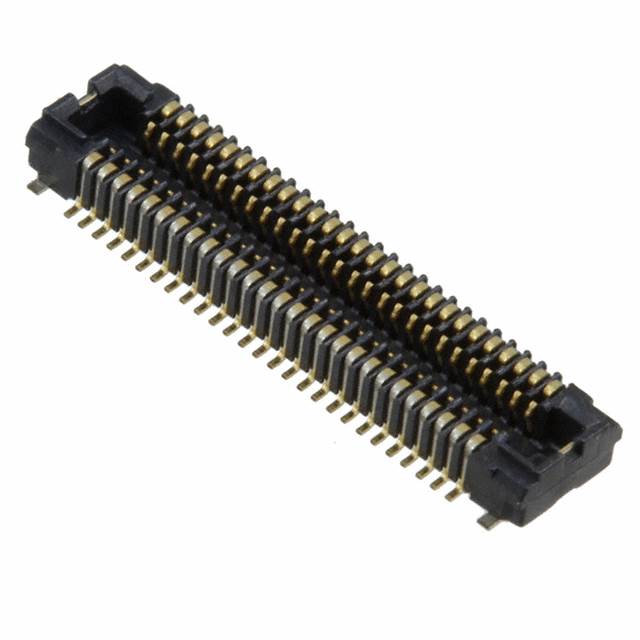

AXT354154

Active

Panasonic Electric Works

CONN SOCKET 54POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 54POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT354154

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	54
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Mated Stacking Heights	Connector Type	Number of Rows	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXT354154	0.016 in	0.4 mm	54	Gold	1.5 mm	Outer Shroud Contacts Socket	2	Surface Mount	Board Guide Solder Retention	0.057 in	1.45 mm
Panasonic Electric Works AXT354124	0.016 in	0.4 mm	54	Gold	1.5 mm 2 mm	Outer Shroud Contacts Socket	2	Surface Mount	Solder Retention	0.057 in	1.45 mm
Panasonic Electric Works AXT354114	0.016 in	0.4 mm	54	Gold	1.5 mm	Outer Shroud Contacts Socket	2	Surface Mount	Board Guide Solder Retention	0.057 in	1.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 3.08
