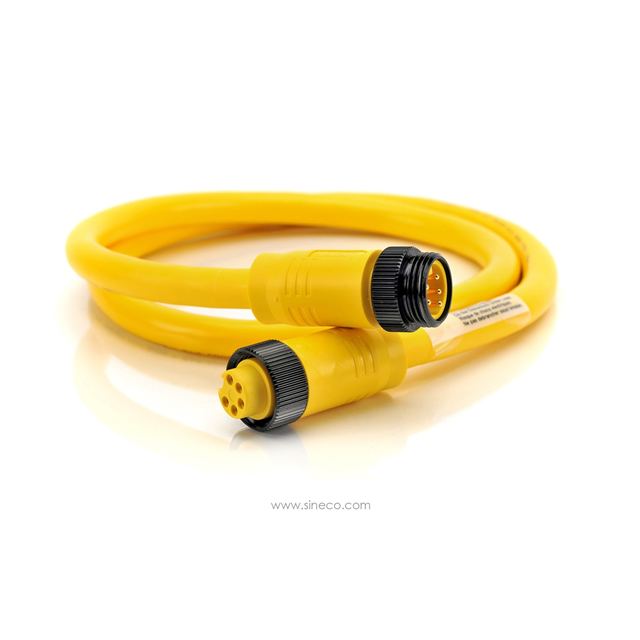

MN57A4AC01M010

Active

Amphenol Sine Systems Corp

CIRC CBL 5POS RCPT TO PLUG 3.28'

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CIRC CBL 5POS RCPT TO PLUG 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	MN57A4AC01M010

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	0.875 in
1st Connector Shell Size - Insert	M22
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	0.875 "
2nd Connector Shell Size - Insert	M22
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	Shielding	1st Connector Orientation [custom]	2nd Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Shell Size - Insert	Usage	1st Connector Number of Positions Loaded	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	Ingress Protection	Color	Cable Material	Cable Type	2nd Connector Number of Positions	2nd Connector Shell Size - Insert	2nd Connector Shell Size - Insert	Length [x]	Length [x]	1st Connector Gender	2nd Connector Type	2nd Connector Gender	1st Connector Mounting Type	1st Connector Type	Assembly Configuration
Amphenol Sine Systems Corp MN57A4AC01M150	Unshielded	Keyed	Free Hanging (In-Line)	0.875 in	M22	Industrial Environments	All	5	All	IP67 - Dust Tight Waterproof	Yellow	Polyvinyl Chloride (PVC)	Round	5	0.875 "	M22	15 m	49.2 ft	Male Pins	Plug	Female Sockets	Free Hanging (In-Line)	Receptacle	Standard
Amphenol Sine Systems Corp MN57A4AC01M010	Unshielded	Keyed	Free Hanging (In-Line)	0.875 in	M22	Industrial Environments	All	5	All	IP67 - Dust Tight Waterproof	Yellow	Polyvinyl Chloride (PVC)	Round	5	0.875 "	M22	1 m	3.28 ft	Male Pins	Plug	Female Sockets	Free Hanging (In-Line)	Receptacle	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 71.71

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
