72912-0
ActivePANEL MOUNT IEC1010 BANANA JACK FOR SHEATHED PLUGS, BLACK
72912-0
ActivePANEL MOUNT IEC1010 BANANA JACK FOR SHEATHED PLUGS, BLACK
Description
General part information
72912 Series

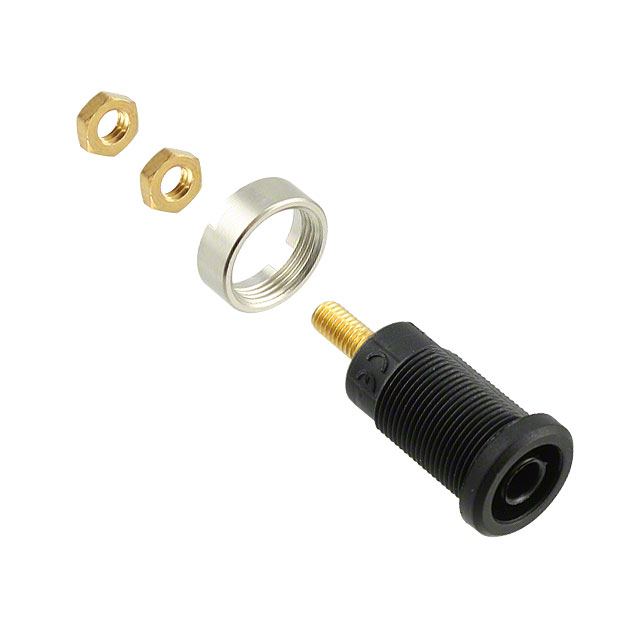

The 72912-0 is a Panel Mount Banana Jack in black for both Shrouded and Unshrouded 4mm Banana Plugs. The banana jack is nickel plated brass and features a gold plated threaded stud and hex nuts for easy wire attachment. The connector is polyamide insulated for durability and strength. It is rated to CAT III 1000V, 36A.
Technical Specifications
Parameters and characteristics for this part
| Specification | 72912-0 |
|---|---|
| Body Material | Nylon, PA, Polyamide |
| Color | Black |
| Contact Finish | Gold |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Mating End Insulated |
| Mounting Type | Panel Mount |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | External (Nut), Threaded |
| Type | Banana Jack |
