CLS10F40,L3F
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 40V 1A CL2E
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS10F40,L3F
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 40V 1A CL2E
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLS10F40,L3F |
|---|---|
| Capacitance @ Vr, F | 130 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 25 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 ¯C |

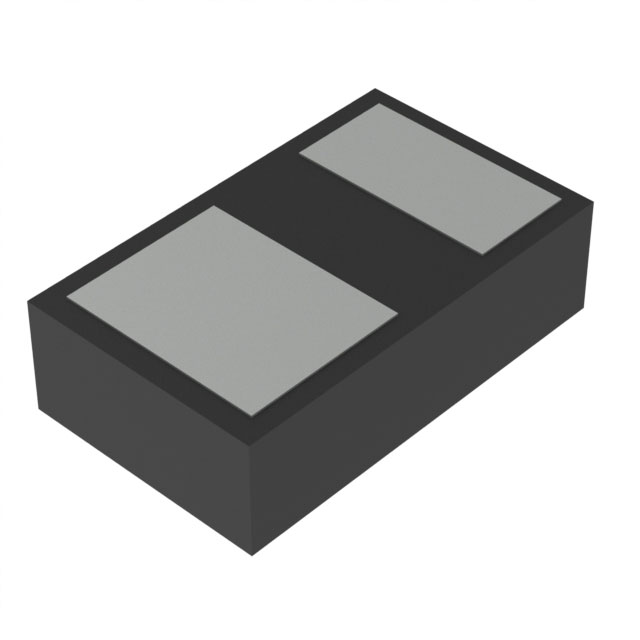

| Package / Case | 0402 (1006 Metric) |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | CL2E |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 570 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.14 | |||
| 5000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.14 | |||
| 5000 | $ 0.13 | |||
| Tape & Reel (TR) | 10000 | $ 0.12 | ||
| 20000 | $ 0.11 | |||
| 30000 | $ 0.10 | |||
| 50000 | $ 0.10 | |||
Description
General part information
CLS10F40 Series
Diode 40 V 1A Surface Mount CL2E
Documents
Technical documentation and resources
