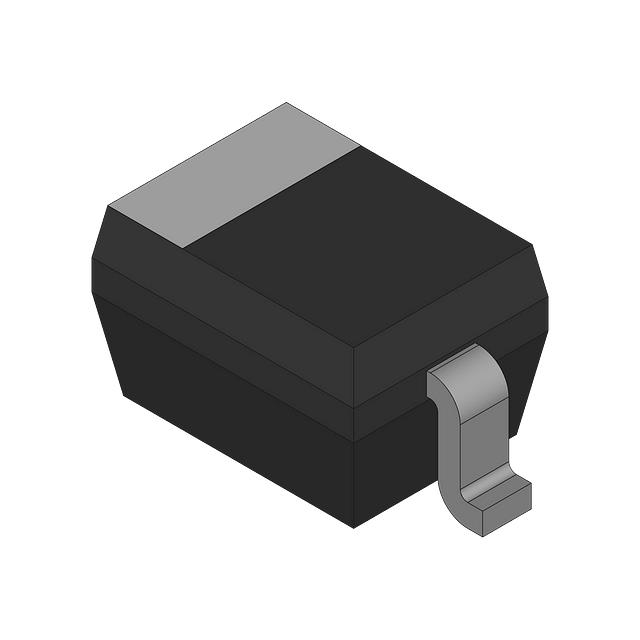

PZU22B2,115

Active

Nexperia

ZENER VOLTAGE REGULATOR DIODES IN A SOD323F PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWave soldering profile Reel pack for SMD, 7''; Q1/T1-Q2/T3 product orientation +6

PZU22B2,115

Active

Nexperia

ZENER VOLTAGE REGULATOR DIODES IN A SOD323F PACKAGE

Deep-Dive with AI

DocumentsWave soldering profile Reel pack for SMD, 7''; Q1/T1-Q2/T3 product orientation +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZU22B2,115

Current - Reverse Leakage @ Vr	50 nA
Impedance (Max) (Zzt) [Max]	25 Ohms
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Package / Case	SOD-323F, SC-90
Power - Max [Max]	310 mW
Supplier Device Package	SOD-323F
Tolerance	2 %
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Zener (Nom) (Vz)	22 V

PZU22B2 Series

Zener voltage regulator diodes in a SOD323F package

Part	Current - Reverse Leakage @ Vr	Tolerance	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If	Power - Max [Max]	Package / Case	Impedance (Max) (Zzt) [Max]	Voltage - Zener (Nom) (Vz)
Nexperia PZU22B2,115	50 nA	2 %	Surface Mount	SOD-323F	-65 ░C	150 °C	1.1 V	310 mW	SC-90, SOD-323F	25 Ohms	22 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10804	$ 0.03

Description

General part information

PZU22B2 Series

General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.

Documents

Technical documentation and resources

PZU22B2,115

Deep-Dive with AI

PZU22B2,115

Deep-Dive with AI

Technical Specifications

PZU22B2 Series

Pricing

Description

PZU22B2 Series

Documents

Wave soldering profile

Reel pack for SMD, 7''; Q1/T1-Q2/T3 product orientation

Questions about package outline drawings

Zener voltage regulator diodes in a SOD323F package

plastic, surface-mounted package; 2 leads; 1.7 mm x 1.25 mm x 0.7 mm body

PZU22B2 Nexperia Product Reliability

Nexperia package poster

plastic, surface-mounted package; 2 leads; 1.7 mm x 1.25 mm x 0.7 mm body
