9312 060500

Active

Belden Inc.

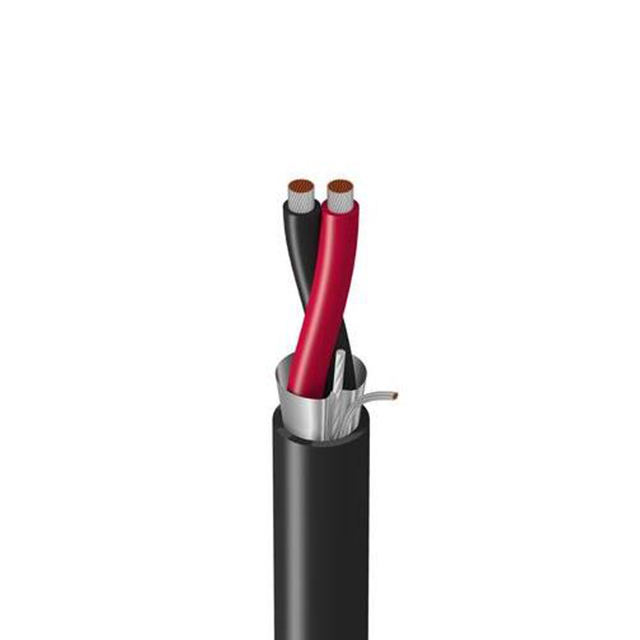

CABLE 2CON 12AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 12AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9312 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Rip Cord, Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	12 AWG

Part	Length [x]	Length [x]	Cable Type	Conductor Insulation	Shield Type	Jacket Color	Conductor Material	Number of Conductors	Voltage	Usage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Ratings	Features
Belden Inc. 9312 060500	500 '	152.4 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	Chrome	Copper Tinned	2	300 V	Instrumentation	Poly-Vinyl Chloride (PVC)	30 AWG	65	100 %	1.067 mm	0.042 in	12 AWG	-30 ░C	105 ░C	Aluminum	UL Style 2464	Drain Wire Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 6.37

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Chrome 12 AWG Foil 500.0' (152.4m)
