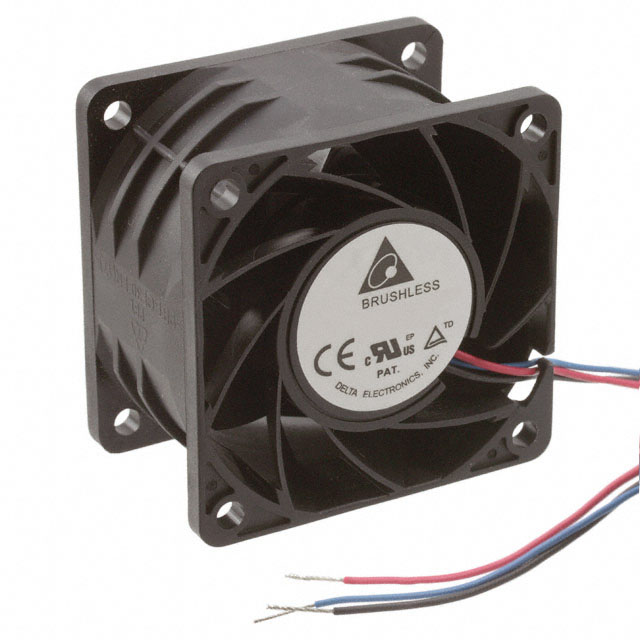

Specification	PFR0612DHE-F00

Air Flow	66 CFM
Approval Agency	cURus, TUV, CE
Bearing Type	Ball
Current Rating	1.6 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	63.3 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	19.2 W
RPM	14500 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	2.502 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.2 VDC
Voltage Range (Min)	7 V
Weight	0.287 lb
Width	38 mm

PFR0612 Series

Part	Weight	Voltage - Rated	Width	Static Pressure	RPM	Features	Bearing Type	Air Flow	Noise	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Termination Leads Count	Termination Type	Termination	Fan Type	Approval Agency	Material - Frame	Lifetime	Current Rating	Material - Blade	Voltage Range (Min)	Voltage Range (Max)
Delta Electronics PFR0612XHE-F00	0.287 lb	12 VAC	38 mm	3.185 in H2O	16500 RPM	Locked Rotor Protection Speed Sensor (Tach)	Ball	76.2 CFM	67.7 dB	158 °F	14 °F	27.6 W	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	Tubeaxial	CE cURus TUV	Plastic	70000 Hrs	2.3 A	Plastic	7 V	13.2 VDC
Delta Electronics PFR0612UHE-F00	0.287 lb	12 VAC	38 mm	1.979 in H2O	12500 RPM	Locked Rotor Protection Speed Sensor (Tach)	Ball	56.7 CFM	60.2 dB	158 °F	14 °F	12 W	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	Tubeaxial	CE cURus TUV	Plastic	70000 Hrs	1 A	Plastic	7 V	13.2 VDC
Delta Electronics PFR0612XHE-SP00	0.287 lb	12 VAC	38 mm	3.185 in H2O	16500 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	76.2 CFM	67.7 dB	158 °F	14 °F	27.6 W	60 mm	Square	60 mm	4 leads	Wire Leads	4 Wire Leads	Tubeaxial	CE cURus TUV	Plastic	70000 Hrs	2.3 A	Plastic	7 V	13.2 VDC
Delta Electronics PFR0612DHE-SP00	0.287 lb	12 VAC	38 mm	2.502 in H2O	14500 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	66 CFM	63.3 dB	158 °F	14 °F	19.2 W	60 mm	Square	60 mm	4 leads	Wire Leads	4 Wire Leads	Tubeaxial	CE cURus TUV	Plastic	70000 Hrs	1.6 A	Plastic	7 V	13.2 VDC
Delta Electronics PFR0612DHE-F00	0.287 lb	12 VAC	38 mm	2.502 in H2O	14500 RPM	Locked Rotor Protection Speed Sensor (Tach)	Ball	66 CFM	63.3 dB	158 °F	14 °F	19.2 W	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	Tubeaxial	CE cURus TUV	Plastic	70000 Hrs	1.6 A	Plastic	7 V	13.2 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PFR0612DHE-F00 | Datasheet

Fans VDE Cert

Fans, Electric - Component UL Cert

Fans, Blowers CSA Cert
