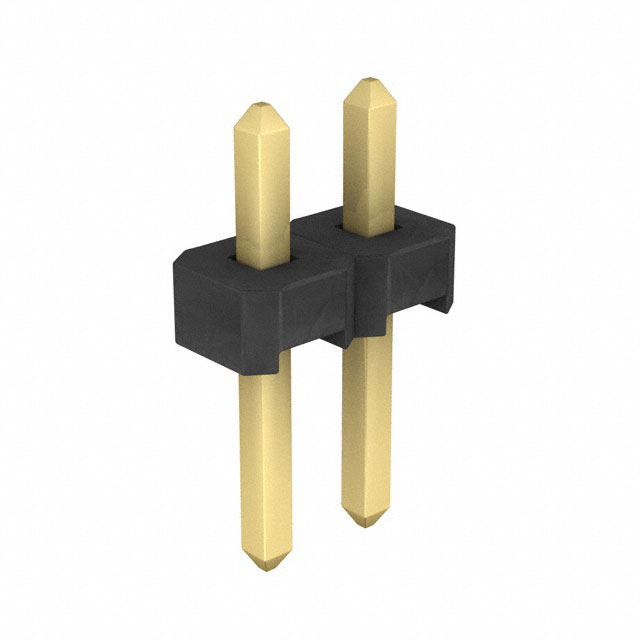

TLW-101-05-G-D

Active

Samtec Inc.

CONN HEADER VERT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTLW, TLW Series Datasheet Datasheet

TLW-101-05-G-D

Active

Samtec Inc.

CONN HEADER VERT 2POS

Deep-Dive with AI

DocumentsMTLW, TLW Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-101-05-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-101 Series

Part	Number of Positions Loaded	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Mounting Type	Contact Type	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Finish - Post	Contact Shape	Insulation Color	Termination	Insulation Material	Number of Positions	Fastening Type	Style	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating
Samtec Inc. TLW-101-06-T-D	All	Unshrouded	0.135 in	3.43 mm	105 ░C	-55 °C	5.2 A	2.54 mm	0.1 in	Header	Through Hole	Male Pin	7.62 mm	0.3 in	0.06 in	1.52 mm	Phosphor Bronze	Tin	Square	Black	Solder	Liquid Crystal Polymer (LCP)	2	Push-Pull	Board to Board Cable	2
Samtec Inc. TLW-101-01-G-D-RA	All	Unshrouded	0.12 in	3.05 mm	125 °C	-55 °C	5.2 A	2.54 mm	0.1 in	Header	Through Hole Right Angle	Male Pin					Phosphor Bronze	Gold	Square	Black	Solder	Liquid Crystal Polymer (LCP)	2	Push-Pull	Board to Board Cable	2	0.197 in	5 mm	Flash	10 çin	0.25 çm	0.23 in	5.84 mm	Gold
Samtec Inc. TLW-101-06-G-S	All	Unshrouded	0.135 in	3.43 mm	125 °C	-55 °C	5.2 A			Header	Through Hole	Male Pin	7.62 mm	0.3 in	0.06 in	1.52 mm	Phosphor Bronze	Gold	Square	Black	Solder	Liquid Crystal Polymer (LCP)	1	Push-Pull	Board to Board Cable	1			Flash	10 çin	0.25 çm			Gold
Samtec Inc. TLW-101-06-L-S-LL	All	Unshrouded	0.135 in	3.43 mm	125 °C	-55 °C	5.2 A			Header	Through Hole	Male Pin	7.62 mm	0.3 in	0.06 in	1.52 mm	Phosphor Bronze		Square	Black	Solder	Liquid Crystal Polymer (LCP)	1	Push-Pull	Board to Board Cable	1								Gold
Samtec Inc. TLW-101-05-FM-S	All	Unshrouded			125 °C	-55 °C	5.2 A			Header	Through Hole	Male Pin	8.51 mm	0.335 in	0.06 in	1.52 mm	Phosphor Bronze	Tin	Square	Black	Solder	Liquid Crystal Polymer (LCP)	1	Push-Pull	Board to Board Cable	1								Gold	4.32 mm	0.17 in	Flash
Samtec Inc. TLW-101-05-G-S	All	Unshrouded			125 °C	-55 °C	5.2 A			Header	Through Hole	Male Pin	8.51 mm	0.335 in	0.06 in	1.52 mm	Phosphor Bronze	Gold	Square	Black	Solder	Liquid Crystal Polymer (LCP)	1	Push-Pull	Board to Board Cable	1			Flash	10 çin	0.25 çm			Gold	4.32 mm	0.17 in
Samtec Inc. TLW-101-05-G-D	All	Unshrouded			125 °C	-55 °C	5.2 A	2.54 mm	0.1 in	Header	Through Hole	Male Pin	8.51 mm	0.335 in	0.06 in	1.52 mm	Phosphor Bronze	Gold	Square	Black	Solder	Liquid Crystal Polymer (LCP)	2	Push-Pull	Board to Board Cable	2			Flash	10 çin	0.25 çm			Gold	4.32 mm	0.17 in
Samtec Inc. TLW-101-06-F-D	All	Unshrouded	0.135 in	3.43 mm	125 °C	-55 °C	5.2 A	2.54 mm	0.1 in	Header	Through Hole	Male Pin	7.62 mm	0.3 in	0.06 in	1.52 mm	Phosphor Bronze	Tin	Square	Black	Solder	Liquid Crystal Polymer (LCP)	2	Push-Pull	Board to Board Cable	2				3 µin	0.076 µm			Gold
Samtec Inc. TLW-101-06-S-D	All	Unshrouded	0.135 in	3.43 mm	125 °C	-55 °C	5.2 A	2.54 mm	0.1 in	Header	Through Hole	Male Pin	7.62 mm	0.3 in	0.06 in	1.52 mm	Phosphor Bronze		Square	Black	Solder	Liquid Crystal Polymer (LCP)	2	Push-Pull	Board to Board Cable	2								Gold
Samtec Inc. TLW-101-05-T-D	All	Unshrouded			105 ░C	-55 °C	5.2 A	2.54 mm	0.1 in	Header	Through Hole	Male Pin	8.51 mm	0.335 in	0.06 in	1.52 mm	Phosphor Bronze	Tin	Square	Black	Solder	Liquid Crystal Polymer (LCP)	2	Push-Pull	Board to Board Cable	2									4.32 mm	0.17 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.62
		10	$ 0.54
		100	$ 0.44
		500	$ 0.39
		1000	$ 0.32
		5000	$ 0.28
		10000	$ 0.26

Description

General part information

TLW-101 Series

Connector Header Through Hole 2 position

Documents

Technical documentation and resources

MTLW, TLW Series Datasheet

Datasheet
