NXF1S0303MC-R13
ActiveMurata Power Solutions Inc.

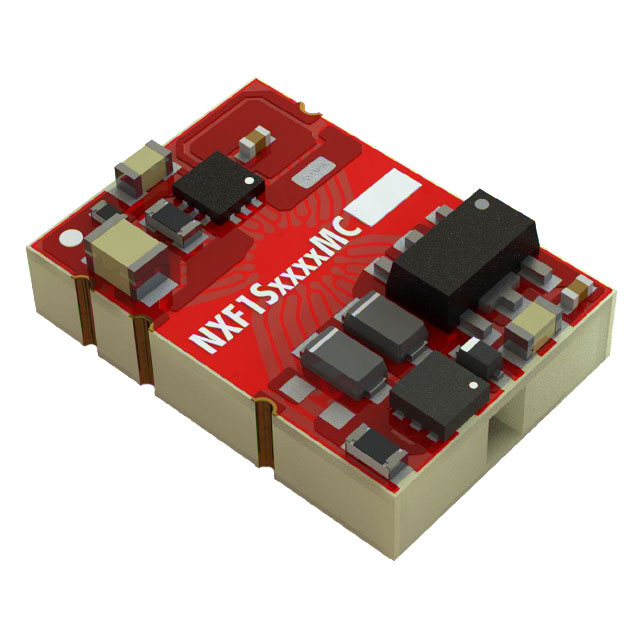

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 3.3 V
Deep-Dive with AI
Search across all available documentation for this part.
NXF1S0303MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 3.3 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NXF1S0303MC-R13 | NXF1S03 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 303 mA |
| Efficiency | - | 59 % |
| Features | - | SCP |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 90 °C |
| Package / Case | - | 5 Leads |
| Package / Case | - | 14-SMD Module |
| Size / Dimension | - | 4.8 mm |
| Size / Dimension | - | 15.2 mm |
| Size / Dimension | - | 10.7 mm |
| Size / Dimension | - | 0.19 in |
| Size / Dimension | - | 0.42 " |
| Size / Dimension | - | 0.6 in |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 3.465 V |
| Voltage - Input (Min) | - | 3.135 V |
| Voltage - Isolation | - | 3000 V |
| Voltage - Output 1 | - | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NXF1S03 Series
DC DC CONVERTER 3.3V 1W
| Part | Voltage - Isolation | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Type | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Package / Case | Package / Case [Max] | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NXF1S0303MC-R7 | 3000 V | ITE (Commercial) | -40 °C | 90 °C | SCP | Surface Mount | 1 | 303 mA | 3.135 V | 3.465 V | 4.8 mm | 15.2 mm | 10.7 mm | 0.19 in | 0.42 " | 0.6 in | 3.3 V | 5 Leads | 14-SMD Module | Isolated Module | 59 % |
Murata Power Solutions Inc. NXF1S0303MC-R13 | |||||||||||||||||||||
Murata Power Solutions Inc. NXF1S0303MC-R13 | 3000 V | ITE (Commercial) | -40 °C | 90 °C | SCP | Surface Mount | 1 | 303 mA | 3.135 V | 3.465 V | 4.8 mm | 15.2 mm | 10.7 mm | 0.19 in | 0.42 " | 0.6 in | 3.3 V | 5 Leads | 14-SMD Module | Isolated Module | 59 % |
Description
General part information
NXF1S03 Series
Isolated Module DC DC Converter 1 Output 3.3V 303mA 3.135V - 3.465V Input
Documents
Technical documentation and resources
