CWSA12AANH

Active

NKK Switches

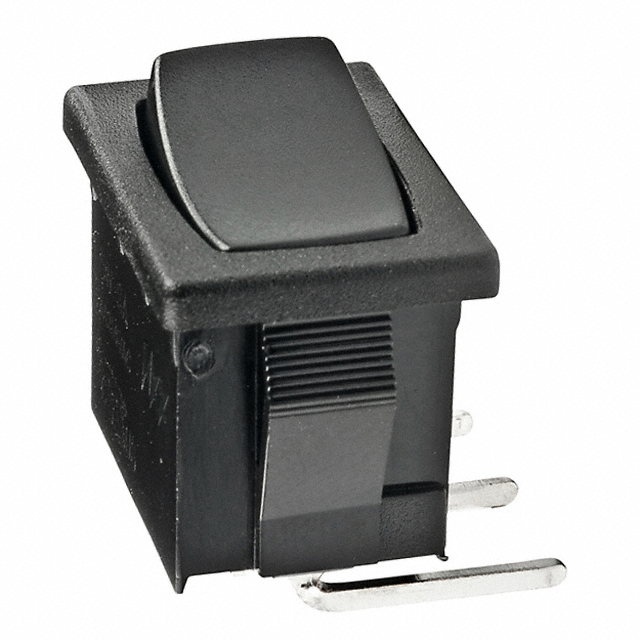

ROCKER SWITCH, ON-NONE-ON, SPDT, NON ILLUMINATED, THROUGH HOLE, BLACK, CW SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, ON-NONE-ON, SPDT, NON ILLUMINATED, THROUGH HOLE, BLACK, CW SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	CWSA12AANH

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	6 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Snap-In, Right Angle, Panel Mount
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	250 V

Part	Actuator Marking	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Actuator Type	Circuit	Current Rating (Amps)	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Mechanical Life	Electrical Life	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Approval Agency	Switch Function
NKK Switches CWSA12AANS	No Marking	-10 °C	158 °F	Concave (Curved)	SPDT	6 A	Panel Mount Snap-In	12.9 mm	Rectangular	19.2 mm	30000 Steps	10000 Cycles	250 V	Black	Solder Lug	cULus	On-On
NKK Switches CWSA12AANH	No Marking	-10 °C	158 °F	Concave (Curved)	SPDT	6 A	Panel Mount Right Angle Snap-In	12.9 mm	Rectangular	19.2 mm	30000 Steps	10000 Cycles	250 V	Black	PC Pin	cULus	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 6A (AC) 250 V Panel Mount, Snap-In, Right Angle
