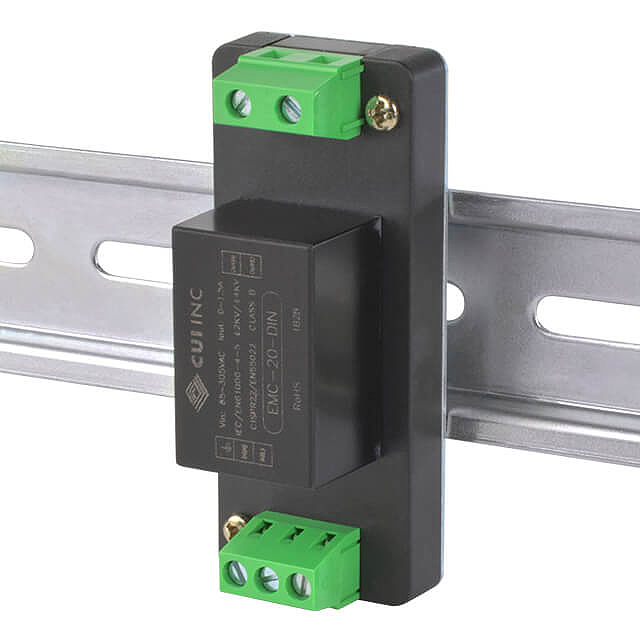

EMC-20-DIN

CUI Inc.

LINE FILTER 85V-305VAC 1.5A DIN

Search across all available documentation for this part.

CUI Inc.

LINE FILTER 85V-305VAC 1.5A DIN

Technical Specifications

Parameters and characteristics commom to parts in this series

LINE FILTER 85V-305VAC 1.5A CHAS

Part	Frequency - Operating	Termination Style	Mounting Type	Current	Configuration	Applications	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type
CUI Inc. EMC-20-T	47 Hz, 63 Hz	Terminal Block	Chassis Mount	1.5 A	Single Stage	General Purpose	305 V	85 V	85 °C	-40 °C	Single Phase
CUI Inc. EMC-20-DIN	47 Hz, 63 Hz	Terminal Block	DIN Rail	1.5 A	Single Stage	General Purpose	305 V	85 V	85 °C	-40 °C	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 1.5 A 85V ~ 305V 47Hz, 63Hz Single Stage Terminal Block

Technical documentation and resources

No documents available
