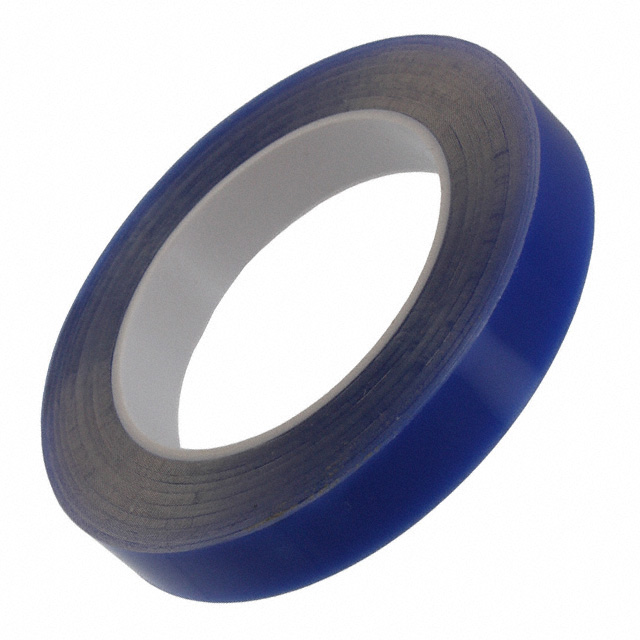

Specification	8905-1" X 6"-250

Adhesive	Silicone Thermosetting
Backing	Polyester
Carrier	Polyester
Color	Blue
Length	0.5 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature (Maximum)	80 °F
Storage/Refrigeration Temperature (Minimum)	60 °F
Tape Type	Splicing
Temperature Range (Max)	400 °F
Temperature Range (Min)	-60 °F
Thickness	0.0065 in
Thickness - Adhesive	0.0015 in
Thickness - Backing, Carrier	0.005 in
Width	1 in

8905 Series

...

Part	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Shelf Life Start	Shelf Life	Tape Type	Width	Length	Color	Thickness	Adhesive	Temperature Range (Min)	Temperature Range (Max)	Thickness - Adhesive	Carrier	Backing	Thickness - Backing, Carrier	Usage	Length (yd)	Length (ft)
3M (TC) 8905-1.5" X 5"-250	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	1.5 in	5 in	Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in
3M (TC) 8905-4-10	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	4 in		Blue	0.0065 in	Silicone Thermosetting	-65 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in	High Temperature Sealant	10 yd	30 ft
3M (TC) 8905-2" X 7.25"-100	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	2 in	7.25 in	Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in
3M (TC) 3M 8905 1.125" X 72YD	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	1.13 in		Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in		72 yd	216 ft
3M (TC) 8905-9.25" X 1.25"-100	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	9.25 in	1.25 in	Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in
3M (TC) 3M 8905 1.375" X 72YD	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	1.38 in		Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in		72 yd	216 ft
3M (TC) 8905-0.375-10	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	0.38 in		Blue	0.0065 in	Silicone Thermosetting	-65 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in	High Temperature Sealant	10 yd	30 ft
3M (TC) 8905-2-10	80 °F	60 °F	Date of Manufacture	18 Months	Splicing	2 in		Blue	0.0065 in	Silicone Thermosetting	-65 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in	High Temperature Sealant	10 yd	30 ft
3M (TC) 0.625-10-8905	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	0.63 in		Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in		10 yd	30 ft
3M (TC) 8905-1.5" X 1.25"-500	80 °F	60 °F	Date of Manufacture	24 Months	Splicing	1.5 in	1.25 in	Blue	0.0065 in	Silicone Thermosetting	-60 °F	400 °F	0.0015 in	Polyester	Polyester	0.005 in
