8905-2-10

Active

3M (TC)

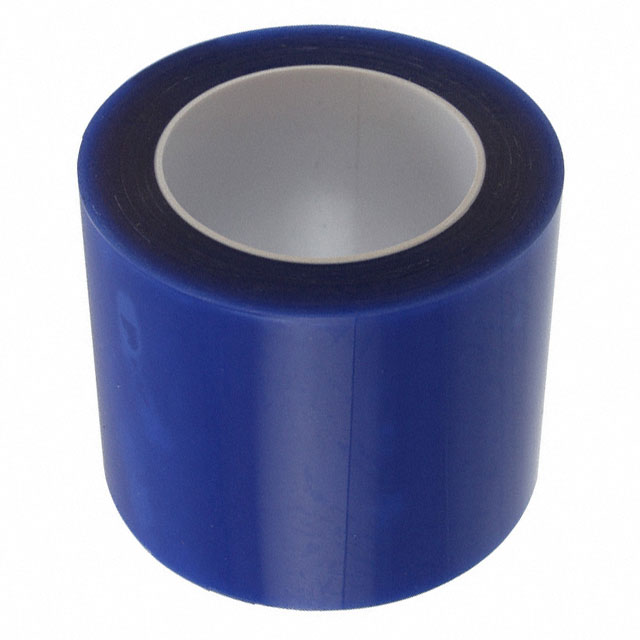

TAPE SPLICING BLUE 2"X10YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Poly Splicing Tapes Bulletin +1

8905-2-10

Active

3M (TC)

TAPE SPLICING BLUE 2"X10YDS

Deep-Dive with AI

DocumentsDatasheet Poly Splicing Tapes Bulletin +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8905-2-10

Adhesive	Silicone Thermosetting
Backing, Carrier	Polyester
Color	Blue
Length [x]	30 ft
Length [x]	9.1 m
Length [x]	10 yds
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Splicing
Temperature Range [Max]	204 °C, 400 °F
Temperature Range [Min]	-65 °F, -54 °C
Thickness	0.0065 in
Thickness	6.5 mils
Thickness	0.165 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	High Temperature Sealant
Width [y]	2 "
Width [y]	50.8 mm

8905 Series

...

Part	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Length [x]	Length [x]	Shelf Life Start	Adhesive	Tape Type	Shelf Life	Width	Width	Width	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness	Thickness	Thickness	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Color	Width [x]	Width [x]	Length [x]	Usage	Width [y]	Width [y]	Length	Length	Length	Width
3M (TC) 8905-1.5" X 5"-250	204 °C	400 °F	-60 °F	-50 °C	5 in	127 mm	Date of Manufacture	Silicone Thermosetting	Splicing	24 Months	1.5 "	38.1 mm	1 1/2	16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue
3M (TC) 8905-4-10		204 °C 400 °F	-65 °F -54 °C		30 ft	9.1 m	Date of Manufacture	Silicone Thermosetting	Splicing	24 Months				16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue	4 "	101.6 mm	10 yds	High Temperature Sealant
3M (TC) 8905-2" X 7.25"-100	204 °C	400 °F	-60 °F	-50 °C			Date of Manufacture	Silicone Thermosetting	Splicing	24 Months				16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue					2 "	50.8 mm	7.25 in	184.15 mm
3M (TC) 3M 8905 1.125" X 72YD	204 °C	400 °F	-60 °F	-50 °C			Date of Manufacture	Silicone Thermosetting	Splicing	24 Months	1.13 in	28.58 mm		16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue							216 ft	66 m	72 yd
3M (TC) 8905-9.25" X 1.25"-100	204 °C	400 °F	-60 °F	-50 °C			Date of Manufacture	Silicone Thermosetting	Splicing	24 Months				16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue	9.25 in	234.95 mm					1.25 in	31.75 mm
3M (TC) 8905-2-10		204 °C 400 °F	-65 °F -54 °C		30 ft	9.1 m	Date of Manufacture	Silicone Thermosetting	Splicing	18 Months				16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue			10 yds	High Temperature Sealant	2 "	50.8 mm
3M (TC) 0.625-10-8905	204 °C	400 °F	-60 °F	-50 °C	30 ft	9.1 m	Date of Manufacture	Silicone Thermosetting	Splicing	24 Months	0.63 in	16 mm		16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue			10 yds							0.625 in
3M (TC) 8905-1" X 8"-250	204 °C	400 °F	-60 °F	-50 °C			Date of Manufacture	Silicone Thermosetting	Splicing	24 Months				16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue	1 in	25.4 mm					8 in	203.2 mm
3M (TC) 8905-0.75-10		204 °C 400 °F	-65 °F -54 °C		30 ft	9.1 m	Date of Manufacture	Silicone Thermosetting	Splicing	24 Months	0.75 in	0.75 in		16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue			10 yds	High Temperature Sealant						19.05 mm
3M (TC) 3M 8905 0.688" X 72YD	204 °C	400 °F	-60 °F	-50 °C			Date of Manufacture	Silicone Thermosetting	Splicing	24 Months				16 °C 60 °F	27 °C 80 °F	0.0065 in	6.5 mils	0.165 mm	0.005 "	5 mils	0.127 mm	1.5 mils	0.0015 in	0.038 mm	Polyester	Blue					0.69 in	17.48 mm	216 ft	66 m	72 yd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.72
		10	$ 42.24
		25	$ 39.75
		50	$ 37.27
		100	$ 34.78
		250	$ 33.05

Description

General part information

8905 Series

Splicing Tape Silicone Thermosetting Adhesive Blue 2.00" (50.80mm) X 30' (9.1m) 10 yds
