Specification	0521511010

Board-Side Pitch	0.079 in
Cable Pitch	0.079 in
Cable Termination	Poke-In
Color	White
Connector Type	Receptacle
Contact Finish	Tin
Features	Closed End
Mounting Type	Through Hole, Press-Fit, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Wire Gauge	26 AWG

052151 Series

Part	Number of Positions Loaded	Cable Pitch	Wire Gauge	Connector Type	Board-Side Pitch	Mounting Type	Contact Finish	Cable Termination	Number of Rows	Number of Positions	Color	Features
Molex 0521511210	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	12	White	Closed End
Molex 0521510510	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	5	White	Closed End
Molex 0521510710	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	7	White	Closed End
Molex 0521511010	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	10	White	Closed End
Molex 0521510210	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	2	White	Closed End
Molex 0521511410	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	14	White	Closed End
Molex 0521510410	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	4	White	Closed End
Molex 0521510810	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	8	White	Closed End

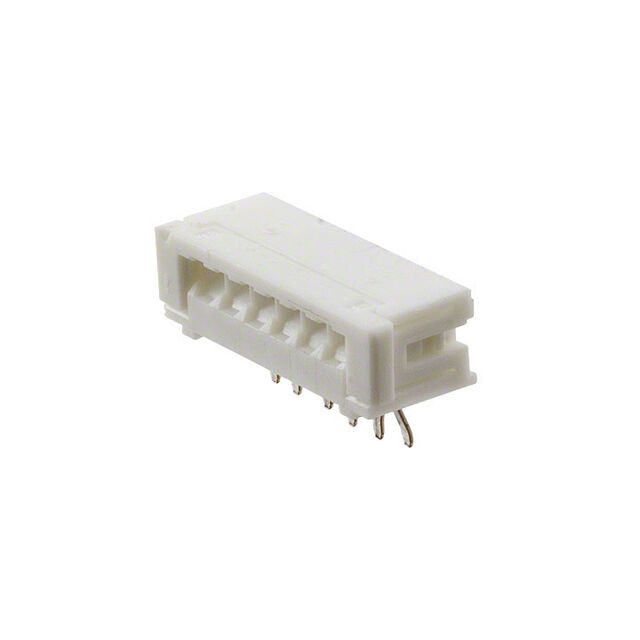

Molex 0521510610	All	0.079 in	26 AWG	Receptacle	0.079 in	Press-Fit Right Angle Through Hole	Tin	Poke-In	1	6	White	Closed End
