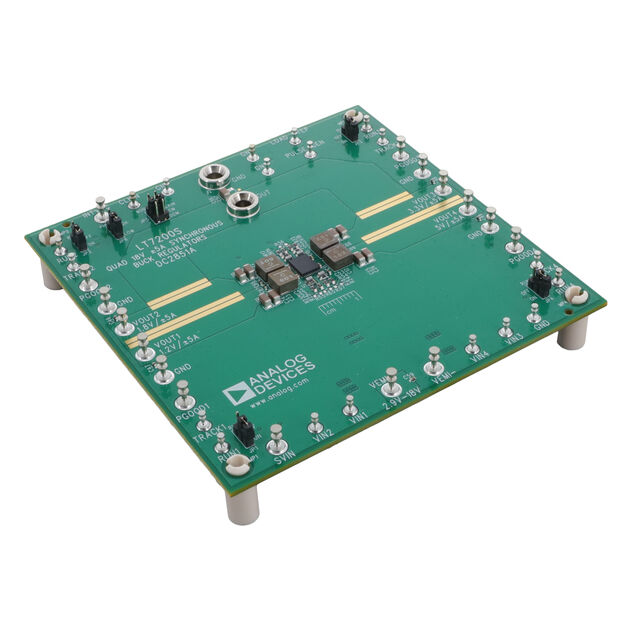

DC2851A
ActiveAnalog Devices
LT7200S DEMO BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC2851A
ActiveAnalog Devices
LT7200S DEMO BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC2851A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 5 A |
| Frequency - Switching | 1 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 4 |
| Outputs and Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | LT7200S |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 2.9 V |
| Voltage - Output | 1.2 V, 5 V, 1.8 V, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 95.50 | |
Description
General part information
LT7200 Series
LT7200S - DC/DC, Step Down 4, Non-Isolated Outputs Evaluation Board
