EA2-5TNJ
ActiveKEMET

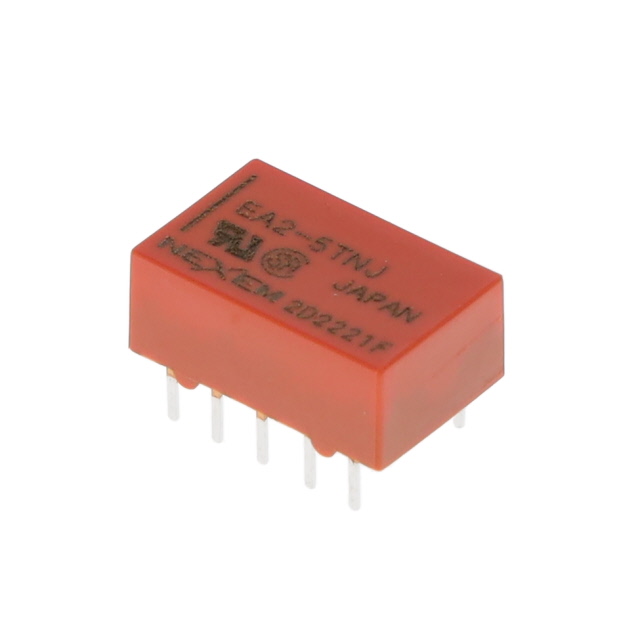

RELAY GENERAL PURPOSE DPDT 1A 5V
Deep-Dive with AI
Search across all available documentation for this part.
EA2-5TNJ
ActiveKEMET
RELAY GENERAL PURPOSE DPDT 1A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EA2-5TNJ |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 28.1 mA |
| Coil Resistance | 178 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold Alloy, Silver Alloy |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 220 W, 250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 1 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.50 | |
| 10 | $ 3.28 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.77 | |||
| 100 | $ 2.62 | |||
| 250 | $ 2.33 | |||
| 500 | $ 2.19 | |||
| 3600 | $ 2.00 | |||
Description
General part information
EA2-5T Series
General Purpose Relay DPDT (2 Form C) Through Hole
