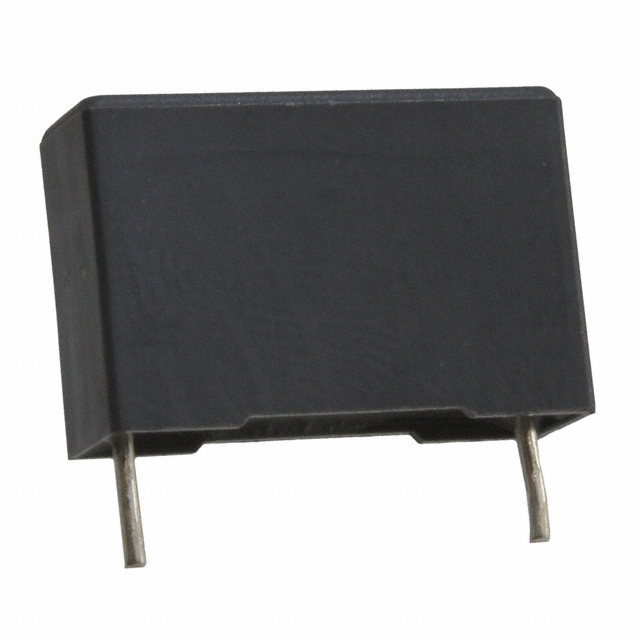

R75RI2150DQ30J

Active

KEMET

CAP FILM 0.015UF 5% 1.25KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR75RI2150DQ30J Datasheet

R75RI2150DQ30J

Active

KEMET

CAP FILM 0.015UF 5% 1.25KVDC RAD

Deep-Dive with AI

DocumentsR75RI2150DQ30J Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75RI2150DQ30J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	15000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	12.1 mm
Height - Seated (Max) [Max] [z]	0.476 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1250 V
Voltage Rating - DC	1.25 kV

R75RI Series

Part	Mounting Type	Voltage Rating - DC	Voltage Rating - DC	Applications	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ratings	ESR (Equivalent Series Resistance)	Capacitance	Voltage Rating - AC	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET R75RI218050H3J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	7.5 mm	18 mm	0.295 in	0.709 in	PC Pins	-55 °C	125 °C	Radial	AEC-Q200	44.2 mOhms	0.018 µF	600 V	15 mm	0.591 in	5 %
KEMET R75RI212050H3J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	6 mm	18 mm	0.236 in	0.709 in	PC Pins	-55 °C	125 °C	Radial	AEC-Q200	66.3 mOhms	0.012 µF	600 V	15 mm	0.591 in	5 %	12.1 mm	0.476 "
KEMET R75RI239050H3J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)		18 mm	0.394 in	0.709 in	PC Pins	-55 °C	125 °C	Radial	AEC-Q200	20.4 mOhms	0.039 µF	600 V	15 mm	0.591 in	5 %			10 mm	16.1 mm	0.634 in
KEMET R75RI256050H3J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	0.433 in 11 mm	0.709 " 18 mm			PC Pins	-55 °C	125 °C	Radial	AEC-Q200	19.9 mOhms	0.056 µF	600 V	15 mm	0.591 in	5 %
KEMET R75RI2150DQ30J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	6 mm	18 mm	0.236 in	0.709 in	PC Pins	-55 °C	105 ░C	Radial	AEC-Q200		15000 pF	600 V	15 mm	0.591 in	5 %	12.1 mm	0.476 "
KEMET R75RI182050H3J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 mm	18 mm	0.197 "	0.709 in	PC Pins	-55 °C	125 °C	Radial	AEC-Q200	97 mOhm		600 V	15 mm	0.591 in	5 %				11.1 mm	0.437 in
KEMET R75RI22705030M	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	8.5 mm	18 mm	0.335 in	0.709 in	PC Pins	-55 °C	105 ░C	Radial	AEC-Q200		0.027 µF	600 V	15 mm	0.591 in	20 %					0.61 "	15.5 mm
KEMET R75RI210050H3J	Through Hole	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 mm	18 mm	0.197 "	0.709 in	PC Pins	-55 °C	125 °C	Radial	AEC-Q200	79.6 mOhms	10000 pF	600 V	15 mm	0.591 in	5 %				11.1 mm	0.437 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.86
		10	$ 0.62
		50	$ 0.54
		100	$ 0.44
	Tape & Box (TB)	680	$ 0.35
		1360	$ 0.33
		2040	$ 0.31
		3400	$ 0.30
		4760	$ 0.29
		6800	$ 0.28
		17000	$ 0.27
		34000	$ 0.26
Newark	Each (Supplied on Full Reel)	1	$ 0.35
		5000	$ 0.34
		10000	$ 0.32
		20000	$ 0.29
		30000	$ 0.27
		50000	$ 0.26

Description

General part information

R75RI Series

0.015 µF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
