3130-20-0103-00

Active

CnC Tech, LLC

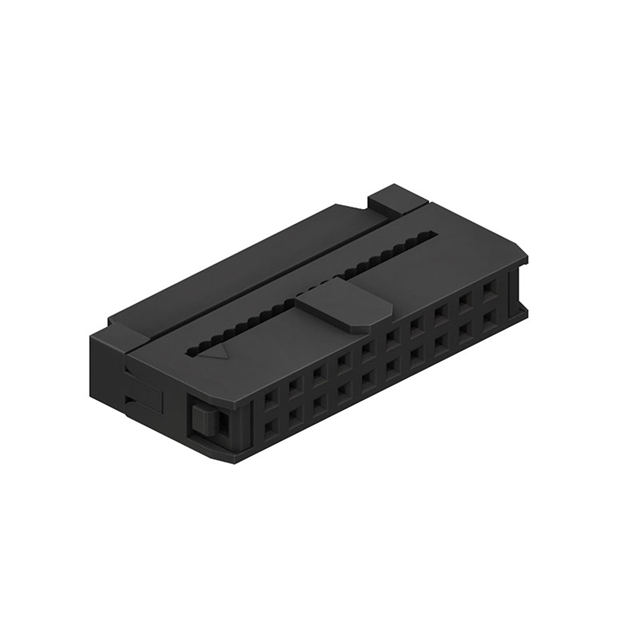

CONN SOCKET 20POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 20POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3130-20-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Type	Ribbon Cable

Part	Number of Positions	Cable Termination	Number of Rows	Wire Type	Features	Contact Finish Thickness	Mounting Type	Contact Finish	Connector Type	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Contact Type
CnC Tech, LLC 3130-20-0102-00	20	IDC	2	Ribbon Cable	Feed Through Polarizing Key	Flash	Free Hanging (In-Line)	Gold	Socket	2 mm	0.079 in	0.079 in	2 mm	Female Socket
CnC Tech, LLC 3130-20-0103-00	20	IDC	2	Ribbon Cable	Feed Through Polarizing Key Strain Relief	Flash	Free Hanging (In-Line)	Gold	Socket	2 mm	0.079 in	0.079 in	2 mm	Female Socket
CnC Tech, LLC 3130-20-0101-00	20	IDC	2	Ribbon Cable	Feed Through	Flash	Free Hanging (In-Line)	Gold	Socket	2 mm	0.079 in	0.079 in	2 mm	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Socket Connector IDC Gold
