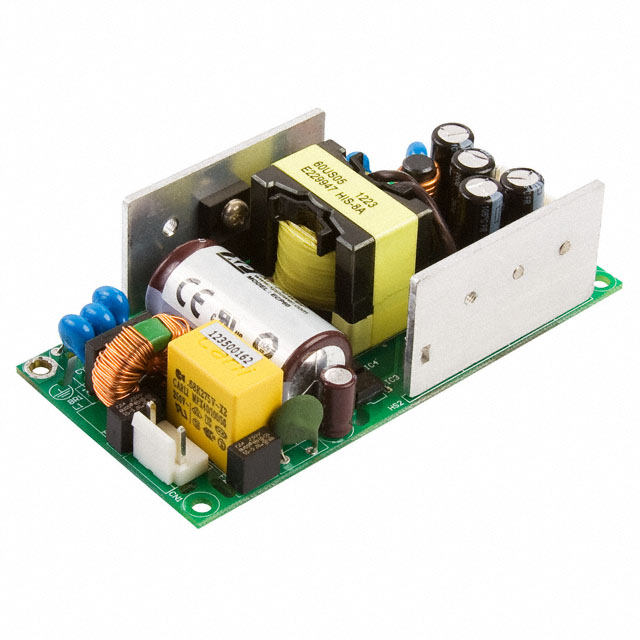

ECP60UT04

Active

XP POWER

AC/DC CONVERTER 5V 24V -12V 60W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 5V 24V -12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	ECP60UT04

Applications	ITE (Commercial), Medical
Current - Output 1	7 A
Current - Output 2	1.5 A
Current - Output 3	300 mA
Efficiency	88 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	-12 V

Part	Standard Number	Mounting Type	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Type	Voltage - Output 3	Features	Voltage - Isolation	Current - Output 3	Voltage - Output 2	Current - Output 2	Minimum Load Required	Applications	Number of Outputs	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
XP POWER ECP60UT03	62368-1	Chassis Mount	7 A	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	88 %	Open Frame	12 V	Adjustable Output Universal Input	4000 V	300 mA	24 V	1.5 A		ITE (Commercial) Medical	3	5 V	-20 °C	70 °C
XP POWER ECP60UT04	62368-1	Chassis Mount	7 A	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	88 %	Open Frame	-12 V	Adjustable Output Universal Input	4000 V	300 mA	24 V	1.5 A		ITE (Commercial) Medical	3	5 V	-20 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 51.19

General part information

Open Frame AC DC Converters 3 Output 5V 24V -12V 85 ~ 264 VAC Input
