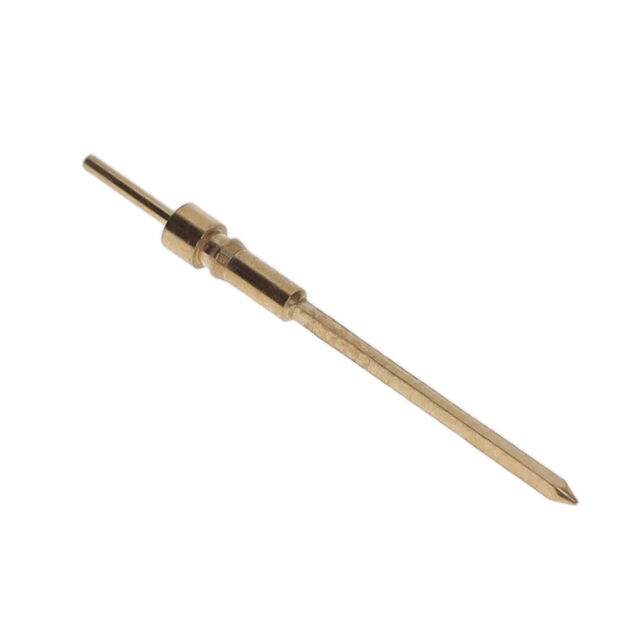

Specification	1090-0-05-15-00-00-01-0

Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Brass Alloy
Flange Diameter	0.072 in
Insulation	Non-Insulated
Length - Above Flange	0.174 in
Length - Below Flange	0.673 in
Length - Overall	0.905 in
Mounting Hole Diameter	0.059 in
Mounting Type	Through Hole
Pin Size - Above Flange (Diameter)	0.025 in
Pin Size - Below Flange Diameter	0.025 inches
Pin Size - Below Flange Shape	Square
Terminal Style	Double End
Terminal Type	PC Pin
Termination	Press-Fit, Wire Wrap

1090-0 Series

Part	Length - Below Flange	Terminal Type	Contact Finish Thickness	Pin Size - Below Flange Diameter	Pin Size - Below Flange Shape	Insulation	Termination	Pin Size - Above Flange (Diameter)	Contact Finish	Terminal Style	Mounting Type	Mounting Hole Diameter	Flange Diameter	Contact Material	Length - Above Flange	Length - Overall
Mill-Max Manufacturing Corp. 1090-0-05-01-00-00-01-0	0.673 in	PC Pin	200 µin	0.025 inches	Square	Non-Insulated	Press-Fit Wire Wrap	0.025 in	Tin-Lead	Double End	Through Hole	0.059 in	0.072 in	Brass Alloy	0.174 in	0.905 in
Mill-Max Manufacturing Corp. 1090-0-05-15-00-00-01-0	0.673 in	PC Pin	10 Ąin	0.025 inches	Square	Non-Insulated	Press-Fit Wire Wrap	0.025 in	Gold	Double End	Through Hole	0.059 in	0.072 in	Brass Alloy	0.174 in	0.905 in
Mill-Max Manufacturing Corp. 1090-0-05-21-00-00-01-0	0.673 in	PC Pin	20 µin	0.025 inches	Square	Non-Insulated	Press-Fit Wire Wrap	0.025 in	Gold	Double End	Through Hole	0.059 in	0.072 in	Brass Alloy	0.174 in	0.905 in
