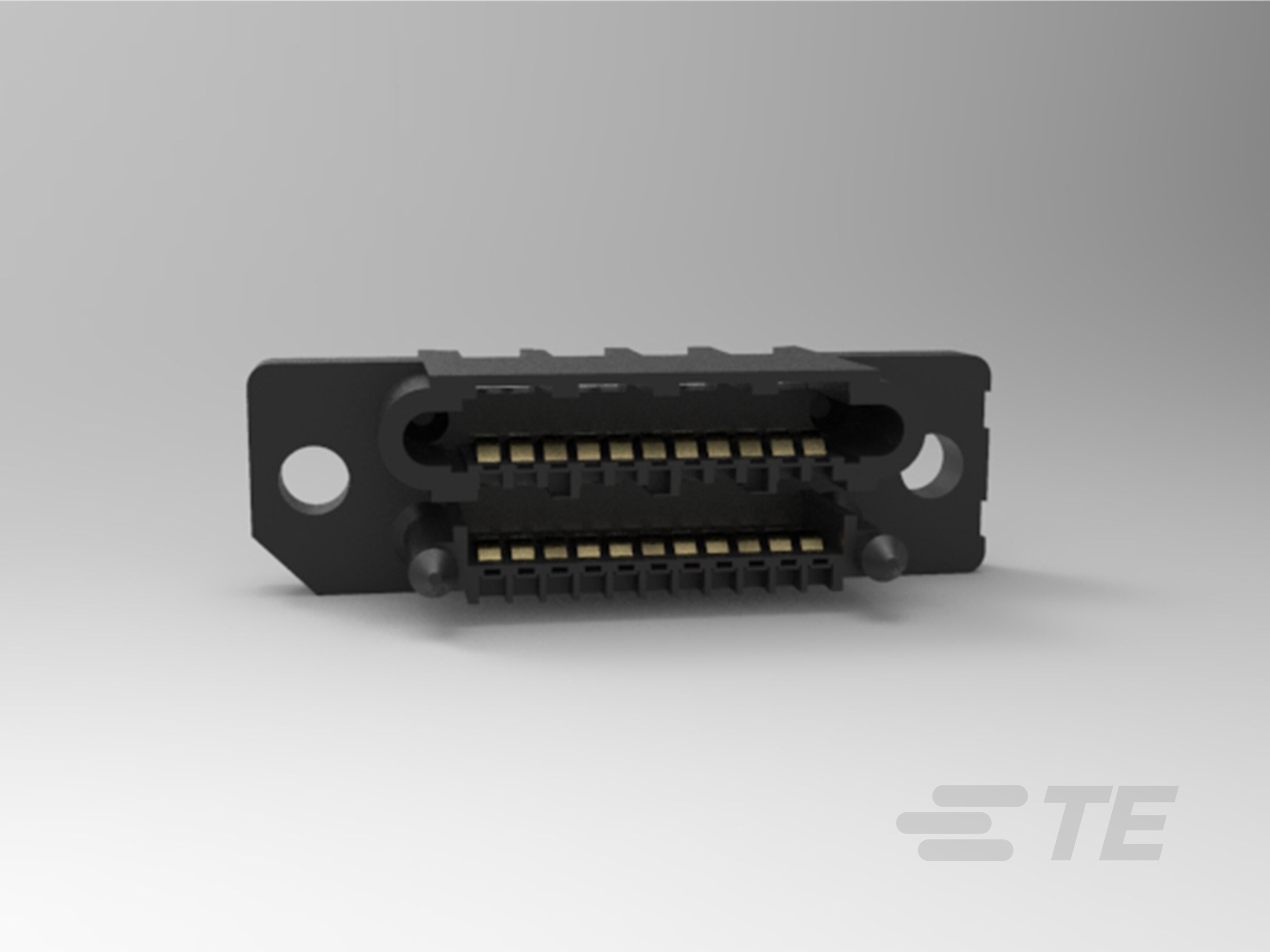

Specification	5-292178-1

Color	Black
Connector Style	Mini-Drawer
Connector Type	Blindmate, Fixed, Non-Gendered
Contact Finish	Gold
Current Rating	2 A
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	22
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.079 in
Termination	Solder
Voltage Rating	125 V

292178 Series

Part	Termination	Pitch	Features	Number of Positions	Mounting Type	Connector Style	Number of Rows	Connector Type	Contact Finish	Number of Positions Loaded	Color	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Material Flammability Rating
TE Connectivity AMP Connectors 292178-1	Solder	0.079 in	Board Guide	22	Panel Mount	Mini-Drawer	2	Blindmate Fixed Non-Gendered	Gold	All	Black	2 A	-20 °C	105 °C	125 V
TE Connectivity AMP Connectors 5-292178-1	Solder	0.079 in	Board Guide	22	Panel Mount	Mini-Drawer	2	Blindmate Fixed Non-Gendered	Gold	All	Black	2 A	-20 °C	105 °C	125 V	UL94 V-0
