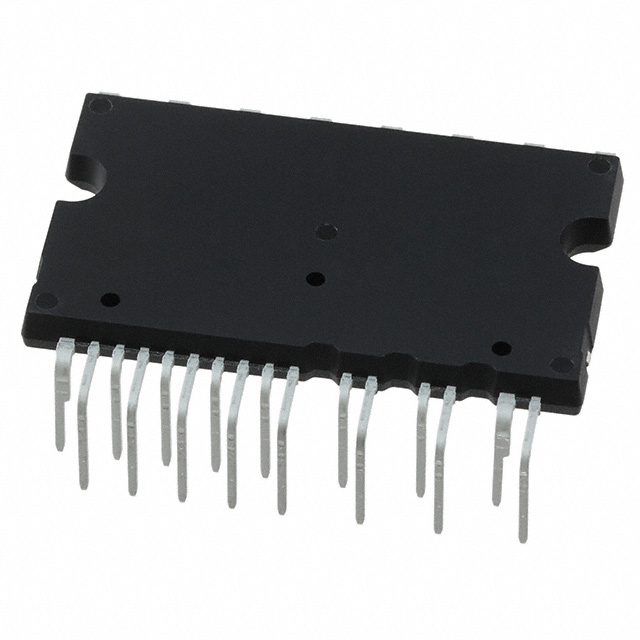

IGCM04G60GAXKMA1
Active600 V, 4 A CIPOS™ MINI 3 PHASE CLOSED EMITTER INTELLIGENT POWER MODULE (IPM) WITH TRENCHSTOP™ IGBT AND BUILT IN NTC IN MDIP-24 FULLPACK PACKAGE.
Deep-Dive with AI
Search across all available documentation for this part.
IGCM04G60GAXKMA1
Active600 V, 4 A CIPOS™ MINI 3 PHASE CLOSED EMITTER INTELLIGENT POWER MODULE (IPM) WITH TRENCHSTOP™ IGBT AND BUILT IN NTC IN MDIP-24 FULLPACK PACKAGE.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IGCM04G60GAXKMA1 |
|---|---|
| Configuration | 3 Phase |
| Current | 4 A |
| Mounting Type | Through Hole |
| Package / Case | 24-PowerDIP Module |
| Package / Case | 1.028 in, 26.1 mm |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 2000 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.26 | |
| 14 | $ 7.08 | |||
| 112 | $ 5.90 | |||
| 504 | $ 5.21 | |||
| 1008 | $ 4.69 | |||
| 2002 | $ 4.39 | |||
Description
General part information
IGCM04 Series
CIPOS™ Mini600 V, 4 A three-phaseintelligent power modulewith closed emitter in DIP 36x21 package. It provides cost and performance optimized efficiency incorporatingReverse Conducting(RC) IGBT along with excellent thermal condution and electrical isolation for low power motor drives.
Documents
Technical documentation and resources
No documents available
