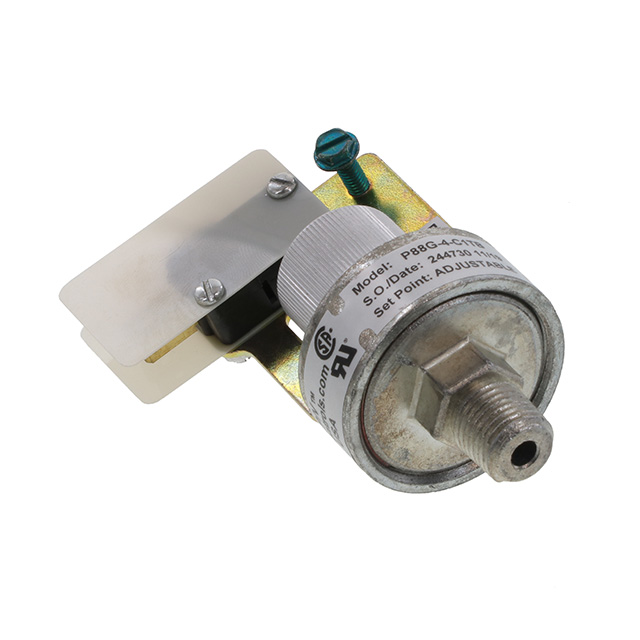

P88G-4-C1TB

Obsolete

Whitman Controls, LLC

PRESSURE SWITCH 3-40 PSIG

Search across all available documentation for this part.

Obsolete

Whitman Controls, LLC

PRESSURE SWITCH 3-40 PSIG

Technical Specifications

Parameters and characteristics for this part

PRESSURE SWITCH 3-40 PSIG

Part	Package / Case	Pressure Type	Accuracy	Accuracy	Termination Style	Port Style	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Output Type	Maximum Pressure	Maximum Pressure	Operating Temperature [Min]	Operating Temperature [Max]
Whitman Controls, LLC P88G-4-C1TB	Cylinder, Threaded	Switch	6.89 kPa	1 PSI	Quick Connect - 0.250" (6.3mm)	Threaded	20.68 kPa	3 PSI	275.79 kPa	40 PSI	NPT	0.25 "	6.35 mm	Male	SPDT	600 PSI	4136.85 kPa	-35 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.30

General part information

PRESSURE SWITCH 3-40 PSIG

Technical documentation and resources

No documents available
