STM32L100C6U6TR

Active

STMicroelectronics

ULTRA-LOW-POWER 32-BIT VALUE LINE ARM CORTEX-M3 MCU WITH 32 KBYTES OF FLASH MEMORY, 32 MHZ CPU, LCD, USB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STM32L100C6U6TR

Active

STMicroelectronics

ULTRA-LOW-POWER 32-BIT VALUE LINE ARM CORTEX-M3 MCU WITH 32 KBYTES OF FLASH MEMORY, 32 MHZ CPU, LCD, USB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32L100C6U6TR

Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters
Data Converters [custom]	12 b
Data Converters [custom]	16
EEPROM Size	2K x 8
Mounting Type	Surface Mount
Number of I/O	37
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

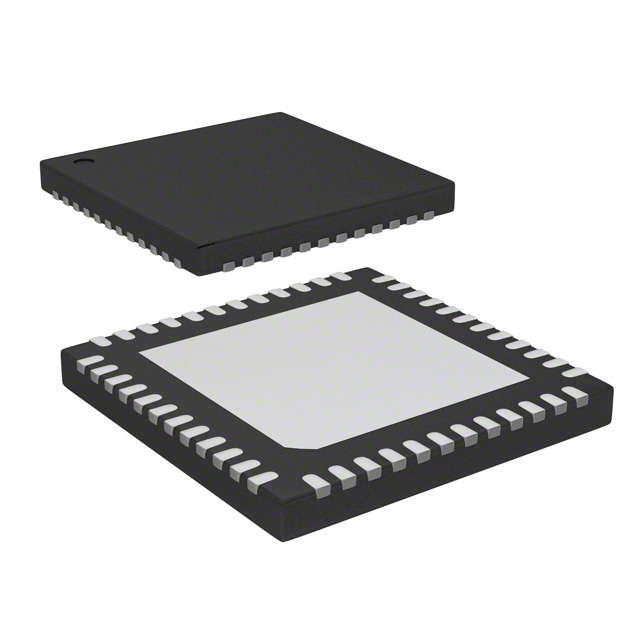

Package / Case	48-UFQFN Exposed Pad
Peripherals	WDT, PWM, LCD, POR, Brown-out Detect/Reset, DMA
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	4K x 8
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

STM32L100R8-A Series

Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 32 MHz CPU, LCD, USB

Part	Package / Case	Speed	Number of I/O	Program Memory Type	Core Size	Supplier Device Package	Peripherals	Mounting Type	Data Converters [custom]	Data Converters [custom]	Program Memory Size	Core Processor	EEPROM Size	RAM Size	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Data Converters [custom]	Data Converters [custom]
STMicroelectronics STM32L100RBT6	64-LQFP	32 MHz	51	FLASH	32-Bit Single-Core	64-LQFP (10x10)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Surface Mount	2 channels 20	12	128 KB	ARM® Cortex®-M3	2K x 8	16 K	Internal	1.8 V	3.6 V	85 °C	-40 °C
STMicroelectronics STM32L100RCT6TR	64-LQFP	32 MHz	51	FLASH	32-Bit Single-Core	64-LQFP (10x10)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Surface Mount	2 channels 20	12	256 KB	ARM® Cortex®-M3	4K x 8	16 K	Internal	1.8 V	3.6 V	85 °C	-40 °C
STMicroelectronics STM32L100C6U6TR	48-UFQFN Exposed Pad	32 MHz	37	FLASH	32-Bit Single-Core		Brown-out Detect/Reset DMA LCD POR PWM WDT	Surface Mount			32 KB	ARM® Cortex®-M3	2K x 8		Internal	1.8 V	3.6 V	85 °C	-40 °C	4K x 8	12 b	16
STMicroelectronics STM32L100R8T6TR	64-LQFP	32 MHz	51	FLASH	32-Bit Single-Core	64-LQFP (10x10)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Surface Mount	2 channels 20	12	64 KB	ARM® Cortex®-M3	2K x 8	8 K	Internal	1.8 V	3.6 V	85 °C	-40 °C
STMicroelectronics STM32L100R8T6ATR	64-LQFP	32 MHz	51	FLASH	32-Bit Single-Core	64-LQFP (10x10)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Surface Mount	2 channels 20	12	64 KB	ARM® Cortex®-M3	2K x 8	8 K	Internal	1.8 V	3.6 V	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 3.33

Description

General part information

STM32L100R8-A Series

The ultra-low-power STM32L100RC device incorporates the connectivity power of the universal serial bus (USB) with the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a frequency of 32 MHz (33.3 DMIPS), a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 256 Kbytes and RAM up to 16 Kbytes) and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

The STM32L100RC device offers one 12-bit ADC, two DACs, two ultra-low-power comparators, six general-purpose 16-bit timers and two basic timers, which can be used as time bases.

Moreover, the STM32L100RC device contains standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2S, three USARTs, and an USB.
