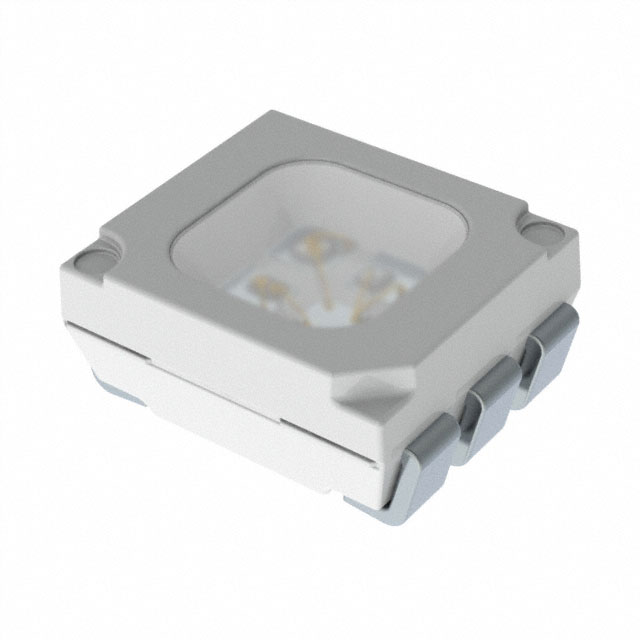

LTST-G683GEBW
ActiveDiodes Inc
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTST-G683GEBW
ActiveDiodes Inc
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTST-G683GEBW |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 267.5 mcd |
| Millicandela Rating [custom] | 1570 mcd |
| Millicandela Rating [custom] | 627.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 3.3 mm |
| Size / Dimension [y] | 3 mm |
| Supplier Device Package | 6-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.3 V |
| Wavelength - Dominant | 525 nm, 470 nm, 623 nm |
| Wavelength - Peak | 630 nm, 518 nm, 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 2000 | $ 0.27 | ||
| 4000 | $ 0.26 | |||
| 6000 | $ 0.25 | |||
| 10000 | $ 0.24 | |||
| 14000 | $ 0.24 | |||
| 20000 | $ 0.23 | |||
Description
General part information
LTST-G683 Series
Red, Green, Blue (RGB) 623nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.3V Green, 3.3V Blue 6-SMD, J-Lead
