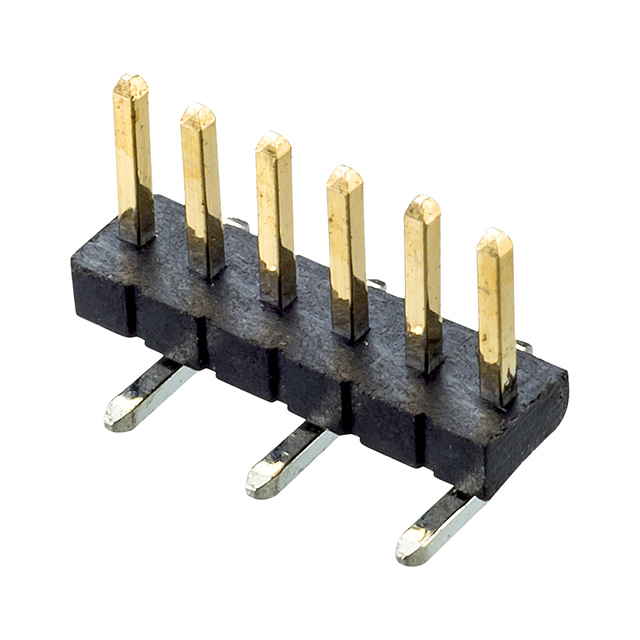

M50-3630642

Active

Harwin Inc.

CONN, HEADER, 6POS, 1ROW, 1.27MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONN, HEADER, 6POS, 1ROW, 1.27MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3630642

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.039 "
Insulation Height	1 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Mated Stacking Heights	3.6 mm, 5.1 mm, 5.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Connector Type	Termination	Number of Positions	Contact Type	Mated Stacking Heights	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Shape	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Material	Number of Rows	Fastening Type	Current Rating (Amps)	Features
Harwin Inc. M50-3630642	Unshrouded	Header	Solder	6	Male Pin	3.6 mm 5.1 mm 5.9 mm	Nylon 9T Polyamide (PA9T)	Black	All	3 mm	0.118 in	Surface Mount	Square	Gold	0.05 in	1.27 mm	2.54 µm	100 µin	UL94 V-0	Tin	-40 °C	105 ░C	0.039 "	1 mm	Brass	1	Push-Pull	1 A
Harwin Inc. M50-3630442R	Unshrouded	Header	Solder	4	Male Pin	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Nylon 9T Polyamide (PA9T)	Black	All	3 mm	0.118 in	Surface Mount	Square	Gold	0.05 in	1.27 mm	2.54 Ąm	100 Ąin	UL94 V-0	Tin	-40 °C	105 ░C	0.039 "	1 mm	Brass	1	Push-Pull	1 A	Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.050" (1.27mm)
