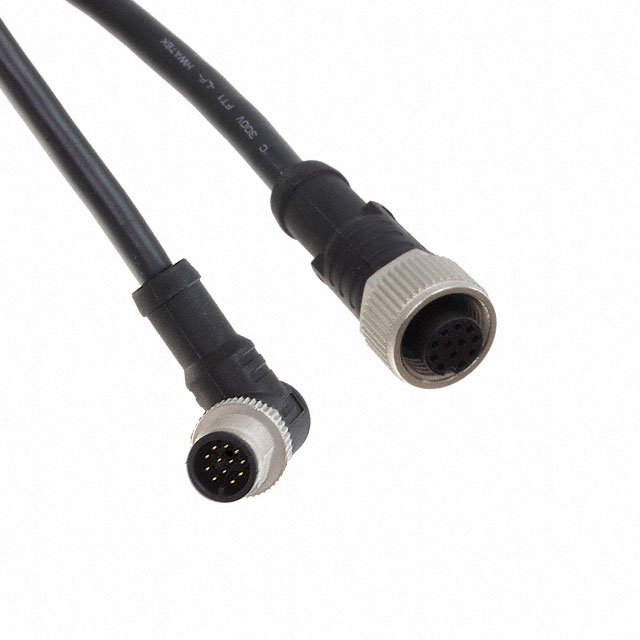

M12A12FL-12AMR-SBA05

Active

Amphenol LTW

CABLE: FOR SENSORS/AUTOMATION; PIN: 12; WITH METAL NUT; PLUG; 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A12FL-12AMR-SBA05

Active

Amphenol LTW

CABLE: FOR SENSORS/AUTOMATION; PIN: 12; WITH METAL NUT; PLUG; 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A12FL-12AMR-SBA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions [custom]	12
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	12
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

M12A12FL Series

Part	1st Connector Shell Size - Insert	1st Connector Orientation	Cable Type	1st Connector Type	Cable Material	1st Connector Gender	2nd Connector Mounting Type	2nd Connector Number of Positions	Length [x]	Length [x]	Shielding	2nd Connector Gender	Ingress Protection	1st Connector Number of Positions [custom]	Assembly Configuration	2nd Connector Shell Size - Insert	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Color	2nd Connector Number of Positions Loaded	2nd Connector Type	Usage
Amphenol LTW M12A12FL-12AFL-SD001	M12	A	Round	Plug	Polyvinyl Chloride (PVC)	Female Sockets	Free Hanging (In-Line)	12	1 m	3.28 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AMR-SDA05	M12	A	Round	Receptacle Right Angle	Polyvinyl Chloride (PVC)	Male Pins	Free Hanging (In-Line)	12	500 mm	1.64 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AFR-SBA05	M12	A	Round	Plug Right Angle	Polyurethane (PUR)	Female Sockets	Free Hanging (In-Line)	12	500 mm	1.64 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AFL-SDA05	M12	A	Round	Plug	Polyvinyl Chloride (PVC)	Female Sockets	Free Hanging (In-Line)	12	500 mm	1.64 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AFL-SBA05	M12	A	Round	Plug	Polyurethane (PUR)	Female Sockets	Free Hanging (In-Line)	12	500 mm	1.64 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AMR-SBA05	M12	A	Round	Receptacle Right Angle	Polyurethane (PUR)	Male Pins	Free Hanging (In-Line)	12	500 mm	1.64 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AFL-SB002	M12	A	Round	Plug	Polyurethane (PUR)	Female Sockets	Free Hanging (In-Line)	12	2 m	6.56 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments
Amphenol LTW M12A12FL-12AFL-SB001	M12	A	Round	Plug	Polyurethane (PUR)	Female Sockets	Free Hanging (In-Line)	12	1 m	3.28 ft	Unshielded	Female Sockets	IP68 IP69K	12	Standard	M12	Free Hanging (In-Line)	All	Black	All	Plug	Industrial Environments

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.76
		10	$ 19.93
		25	$ 19.07
		50	$ 18.45
		100	$ 17.84
		250	$ 16.85
		500	$ 16.36
TME	N/A	1	$ 43.26
		10	$ 38.45
		20	$ 33.65

Description

General part information

M12A12FL Series

Cable Assembly 1.64' (500.00mm)
