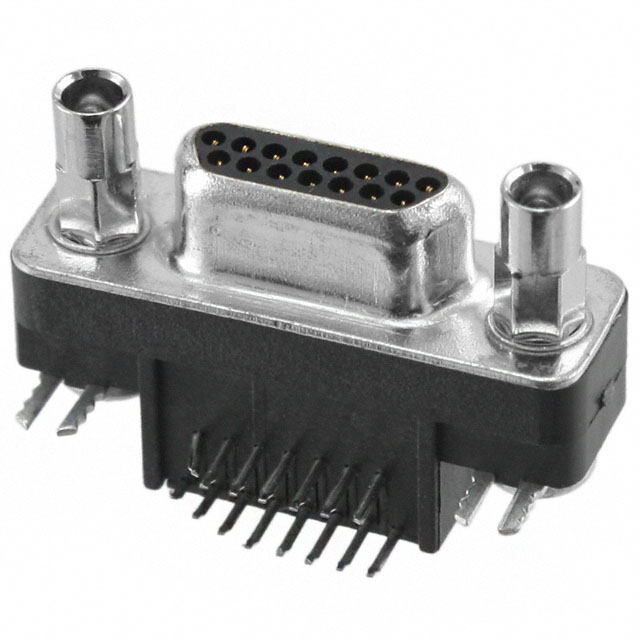

381-015-112L565
ActiveMH Connectors
D SUB CONNECTOR, MICRO D, PLUG, 381 SERIES, 15 CONTACTS, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
381-015-112L565
ActiveMH Connectors
D SUB CONNECTOR, MICRO D, PLUG, 381 SERIES, 15 CONTACTS, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 381-015-112L565 |
|---|---|
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
381-015 Series
The Micro D 381 series 1.27mm pitch Micro-D male right angle PCB mount standard D-sub Connectors with copper alloy contacts with 15μ-inch gold plating on mating area or tin plating on solder area, all nickel underplated contact, thermoplastic insulator and cold rolled steel, bright tin over copper shell.
