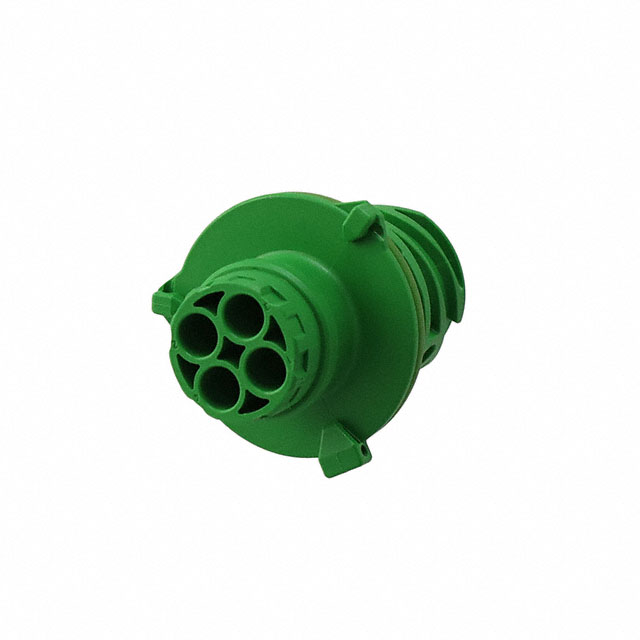

CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-967402-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-967402-1 | 967402 Series |
|---|---|---|
| Connector Type | Receptacle Housing | Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 2.5 mm | 2.5 mm |
| Contact Type | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Housing Color | Green | Green, Gray |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof | IP69K - Dust Tight, High Temp Water Jets, Waterproof, IP69K, IP67 |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | 3 | 3 |
| Orientation | - | 2 |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded | Unshielded |
| Type | For Male Pins | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.14 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.88 | |||
| 100 | $ 1.71 | |||
967402 Series
CONN RCPT HSNG MALE 4POS PNL MNT
| Part | Type | Ingress Protection | Number of Positions | Material Flammability Rating | Shell Material | Orientation | Note | Contact Type | Shielding | Mounting Feature | Contact Size | Connector Type | Housing Color | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-967402-1 | For Male Pins | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 4 | UL94 HB | Polybutylene Terephthalate (PBT), Glass Filled | 3 | Contacts Not Included | Crimp | Unshielded | Bulkhead - Rear Side Nut | 2.5 mm | Receptacle Housing | Green | Bayonet Lock | -40 °C | 120 °C | Circular | |
TE Connectivity AMP Connectors 2-967402-1 | For Male Pins | IP67, IP69K | 4 | UL94 HB | Polybutylene Terephthalate (PBT), Glass Filled | Contacts Not Included | Crimp | Unshielded | Bulkhead - Rear Side Nut | 2.5 mm | Receptacle Housing | Gray | Bayonet Lock | -40 °C | 120 °C | Circular | 2 |
Description
General part information
967402 Series
4 Position Circular Connector Receptacle Housing Panel Mount
