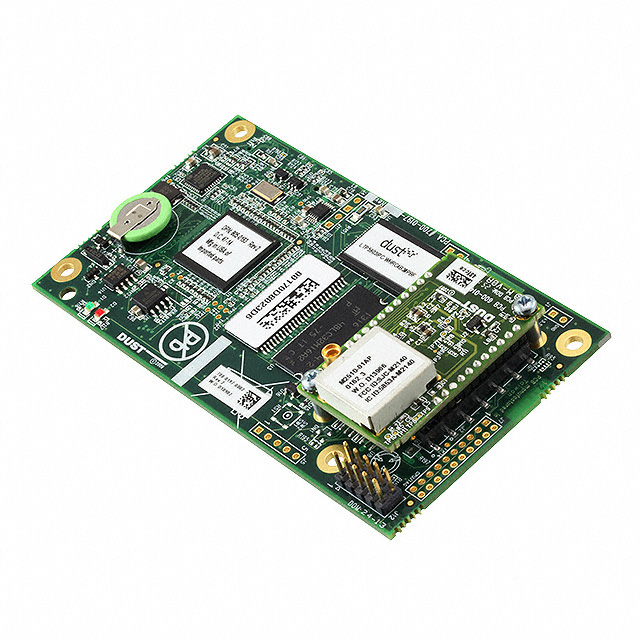

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. Based on the WirelessHART (IEC62591) standard, the LTP5903-WHR runs SmartMesh WirelessHART network management software to monitor and manage network performance and provide a data ingress/egress point via a UART interface. It provides the core networking functionality, enabling the network to achieve unsurpassed levels of resilience, reliability, and scalability with advanced network management and comprehensive security features.The LTP5903-WHR is designed for use in line-powered gateways and controllers, such as WirelessHART Gateways, and enables customers to integrate a standards-based wireless sensor network that provides scalable bidirectional communications.The embedded network manager offers a comprehensive software application programming interface (API) to deliver rich and flexible functionality without complex coding. This API also provides full visibility and control over network configuration, security administration, network status, and performance statistics. The network-ready embedded manager enables industrial automation vendors to integrate advanced wireless sensor networking intelligence into monitoring and control solutions with low risk and rapid time-to-market.Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Manager FeaturesFeaturesBenefitAdvanced Network ManagementDynamically optimizes mesh connectivity based on the changing RF environment.Scalable Network ManagementManages Networks of Up to 250 Nodes (LTP5903-WHRB) or Up to 500 Nodes (LTP5903-WHRC).Load Balancing and OptimizationAdds more bandwidth for the busiest motes while maintaining normal traffic flow for the rest of network.
