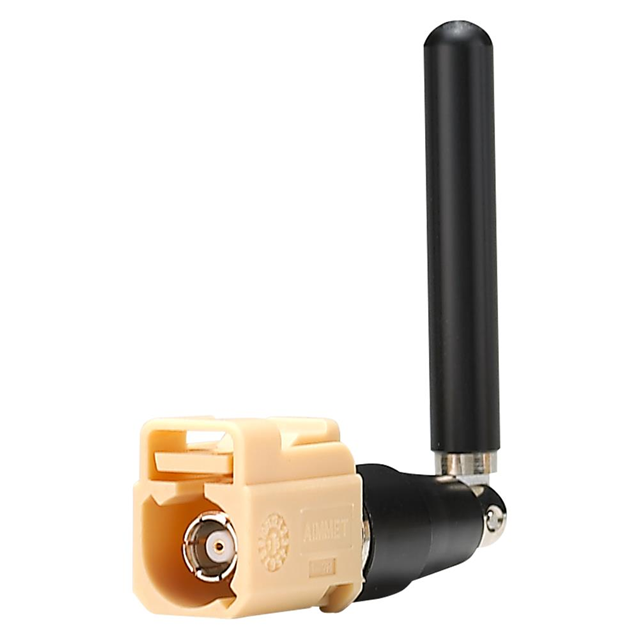

GW.05.0E23

Obsolete

TAOGLAS

GW.05.0E23 DUAL-BAND WIFI 2.4/5.

Search across all available documentation for this part.

Obsolete

TAOGLAS

GW.05.0E23 DUAL-BAND WIFI 2.4/5.

Technical Specifications

Parameters and characteristics for this part

GW.05.0E23 DUAL-BAND WIFI 2.4/5.

Part	Antenna Type	Return Loss	Applications	Height (Max) [Max]	Height (Max) [Max]	Frequency Group [Min]	Frequency Group	Frequency Group [Max]	RF Family/Standard	Gain	Termination	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Frequency (Center/Band)	Number of Bands	Power - Max [Max]
TAOGLAS GW.05.0E23	Tilt, Whip	-5 dB, -3 dB	Bluetooth, Wi-Fi, Zigbee™	69.6 mm	2.74 in	3 GHz	4 GHz	4 GHz	802.15.4, Bluetooth, WiFi	0.64 dBi, 2.46 dBi, 3.73 dBi, 4.09 dBi	Fakra, SMB	2.5 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Connector Mount	3.775 GHz, 4.175 GHz	2	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.43

General part information

RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Whip, Tilt SMB, Fakra Connector Mount

Technical documentation and resources

No documents available
