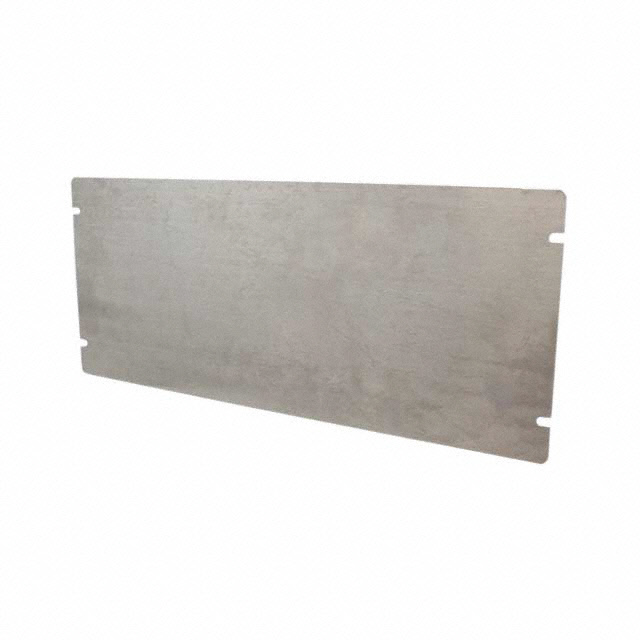

1434-146
ActiveHammond Manufacturing
BOTTOM PLATE FOR ALUM CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
Documents1444 Series
1434-146
ActiveHammond Manufacturing
BOTTOM PLATE FOR ALUM CHASSIS
Deep-Dive with AI
Documents1444 Series
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1434-146 | 1434 Series |
|---|---|---|
| Color | Unpainted | Unpainted |
| For Use With/Related Products | 1444 Series | 1444 Series |
| Material | Metal, Aluminum | Metal, Aluminum |
| Size / Dimension | - | 304.8 - 431.8 mm |
| Size / Dimension | - | 1.3 mm |
| Size / Dimension [x] | 6 in | 3.5 - 17 " |
| Size / Dimension [x] | 152.4 mm | 88.89 - 431.8 mm |
| Size / Dimension [y] | 14 in | 4 - 228.6 " |
| Size / Dimension [y] | 355.6 mm | 101.6 - 431.8 mm |
| Size / Dimension [z] | 0.051 in | 0.04 - 1.02 in |
| Size / Dimension [z] | 1.3 mm | 0.04 - 1.3 mm |
| Type | Cover, Lid | Cover, Lid |
1434 Series
BOTTOM PLATE FOR ALUM CHASSIS
| Part | Color | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Material | Type | For Use With/Related Products | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1434-178 | Unpainted | 8 " | 203.2 mm | 1.3 mm | 0.051 in | 17 " | 431.8 mm | Aluminum, Metal | Cover, Lid | 1444 Series | ||
Hammond Manufacturing 1434-30 | Unpainted | Aluminum, Metal | Cover, Lid | 1444 Series | ||||||||
Hammond Manufacturing 1434-1210 | Unpainted | 10 in | 254 mm | 1.3 mm | 0.051 in | 12 " | 304.8 mm | Aluminum, Metal | Cover, Lid | 1444 Series | ||
Hammond Manufacturing 1434-4535 | Unpainted | 3.5 in | 88.89 mm | 1.02 mm | 0.04 in | 4.5 in | 114.3 mm | Aluminum, Metal | Cover, Lid | 1444 Series | ||
Hammond Manufacturing 1434-10 | Unpainted | 4 in | 101.6 mm | 1.02 mm | 0.04 in | 8 in | 203.2 mm | Aluminum, Metal | Cover, Lid | 1444 Series | ||
Hammond Manufacturing 1434-18 | Unpainted | 5 in | 0.04 in, 1.02 mm | 13.5 " | Aluminum, Metal | Cover, Lid | 1444 Series | |||||
Hammond Manufacturing 1434-1713 | Unpainted | 13 in | 330.2 mm | 0.051 in | 17 " | Aluminum, Metal | Cover, Lid | 1444 Series | 431.8 mm | 1.3 mm | ||
Hammond Manufacturing 1434-1715 | Unpainted | Aluminum, Metal | Cover, Lid | 1444 Series | ||||||||
Hammond Manufacturing 1434-108 | Unpainted | 8 " | 203.2 mm | 1.02 mm | 0.04 in | 10 in | 254 mm | Aluminum, Metal | Cover, Lid | 1444 Series | ||
Hammond Manufacturing 1434-20 | Unpainted | 4 in | 101.6 mm | 1.02 mm | 0.04 in | 6 " | 152.4 mm | Aluminum, Metal | Cover, Lid | 1444 Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.94 | |
| 5 | $ 12.03 | |||
| 10 | $ 11.35 | |||
| 25 | $ 10.57 | |||
| 50 | $ 10.05 | |||
| 100 | $ 9.58 | |||
| 250 | $ 9.04 | |||
| 500 | $ 8.69 | |||
| 1000 | $ 8.37 | |||
Description
General part information
1434 Series
Metal, Aluminum Cover, Lid 6.000" L x 14.000" W x 0.051" H (152.40mm x 355.60mm x 1.30mm) Unpainted
