1434-10

Active

Hammond Manufacturing

COVER FOR PART #1444-9/1444-10

Search across all available documentation for this part.

Active

Hammond Manufacturing

COVER FOR PART #1444-9/1444-10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

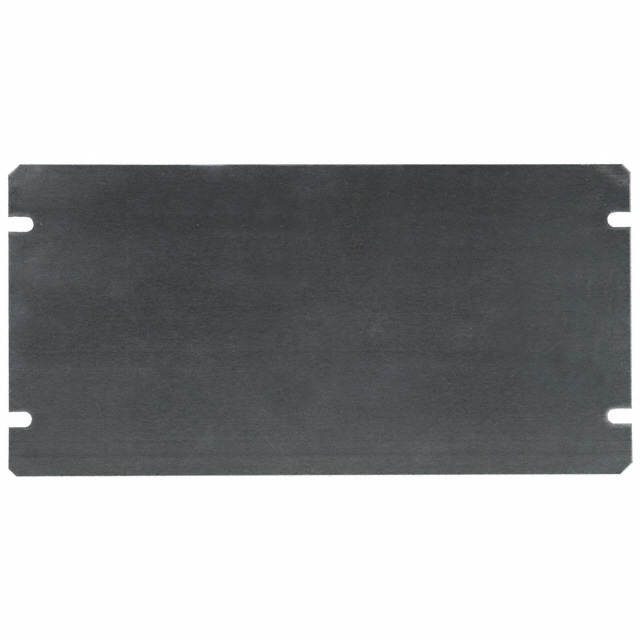

Metal, Aluminum Cover, Lid 4.000" L x 8.000" W x 0.040" H (101.60mm x 203.20mm x 1.02mm) Unpainted

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1434-10	1434 Series

Color	Unpainted	Unpainted
For Use With/Related Products	1444 Series	1444 Series
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension	-	304.8 - 431.8 mm
Size / Dimension	-	1.3 mm
Size / Dimension [x]	101.6 mm	88.89 - 431.8 mm
Size / Dimension [x]	4 in	3.5 - 17 "
Size / Dimension [y]	203.2 mm	101.6 - 431.8 mm
Size / Dimension [y]	8 in	4 - 228.6 "
Size / Dimension [z]	0.04 in	0.04 - 1.02 in
Size / Dimension [z]	1.02 mm	0.04 - 1.3 mm
Type	Cover, Lid	Cover, Lid

BOTTOM PLATE FOR ALUM CHASSIS

Part	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Material	Type	For Use With/Related Products	Size / Dimension [y]	Size / Dimension [z]
Hammond Manufacturing 1434-178	Unpainted	8 "	203.2 mm	1.3 mm	0.051 in	17 "	431.8 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-30	Unpainted							Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-1210	Unpainted	10 in	254 mm	1.3 mm	0.051 in	12 "	304.8 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-4535	Unpainted	3.5 in	88.89 mm	1.02 mm	0.04 in	4.5 in	114.3 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-10	Unpainted	4 in	101.6 mm	1.02 mm	0.04 in	8 in	203.2 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-18	Unpainted	5 in			0.04 in, 1.02 mm	13.5 "		Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-1713	Unpainted	13 in	330.2 mm		0.051 in	17 "		Aluminum, Metal	Cover, Lid	1444 Series	431.8 mm	1.3 mm
Hammond Manufacturing 1434-1715	Unpainted							Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-108	Unpainted	8 "	203.2 mm	1.02 mm	0.04 in	10 in	254 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-20	Unpainted	4 in	101.6 mm	1.02 mm	0.04 in	6 "	152.4 mm	Aluminum, Metal	Cover, Lid	1444 Series
