6637S-1-103
ActiveBourns Inc.

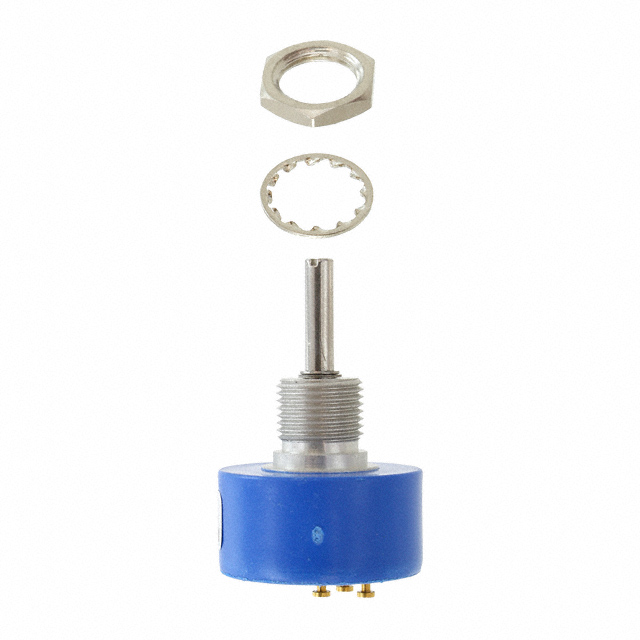

POT 10K OHM 1W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6637S-1-103
ActiveBourns Inc.
POT 10K OHM 1W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6637S-1-103 |
|---|---|
| Actuator Diameter [diameter] | 3.17 mm |
| Actuator Diameter [diameter] | 0.1248 in |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 1 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | Continuous |
| Size - Body [diameter] | 22.23 mm |
| Size - Body [diameter] | 0.875 " |
| Taper | Linear |
| Temperature Coefficient | 500 ppm/°C |
| Termination Style | Solder Turret |
| Tolerance | 10 % |
6637S Series
| Part | Number of Gangs | Built in Switch | Rotation | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Bushing Thread | Adjustment Type | Temperature Coefficient | Termination Style | Size - Body [diameter] | Size - Body [diameter] | Actuator Length [z] | Actuator Length [z] | Actuator Type | Power (Watts) | Resistance (Ohms) | Taper | Resistive Material | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 1 | Continuous | 3.17 mm | 0.1248 in | 1 | 3/8-32 | User Defined | 500 ppm/°C | Solder Turret | 22.23 mm | 0.875 " | 22.23 mm | 0.875 in | Slotted | 1 W | 1 kOhms | Linear | Conductive Plastic | 10 % | ||
Bourns Inc. | 1 | Continuous | 3.17 mm | 0.1248 in | 1 | 3/8-32 | User Defined | 500 ppm/°C | Solder Turret | 22.23 mm | 0.875 " | 22.23 mm | 0.875 in | Slotted | 1 W | Linear | Conductive Plastic | 10 % | 10k | ||
Bourns Inc. | 1 | Continuous | 3.17 mm | 0.1248 in | 1 | 3/8-32 | User Defined | 500 ppm/°C | Solder Turret | 22.23 mm | 0.875 " | 22.23 mm | 0.875 in | Slotted | 1 W | Linear | Conductive Plastic | 10 % | 2k | ||
Bourns Inc. | 1 | Continuous | 3.17 mm | 0.1248 in | 1 | 3/8-32 | User Defined | 500 ppm/°C | Solder Turret | 22.23 mm | 0.875 " | 22.23 mm | 0.875 in | Slotted | 1 W | 5 kOhms | Linear | Conductive Plastic | 10 % | ||
Bourns Inc. | 1 | Continuous | 3.17 mm | 0.1248 in | 1 | 3/8-32 | User Defined | 500 ppm/°C | Solder Turret | 22.23 mm | 0.875 " | 22.23 mm | 0.875 in | Slotted | 1 W | 20 kOhms | Linear | Conductive Plastic | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 52.66 | |
| 10 | $ 42.13 | |||
| 25 | $ 38.51 | |||
| 40 | $ 36.77 | |||
| 80 | $ 34.33 | |||
| 230 | $ 30.88 | |||
Description
General part information
6637S Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
