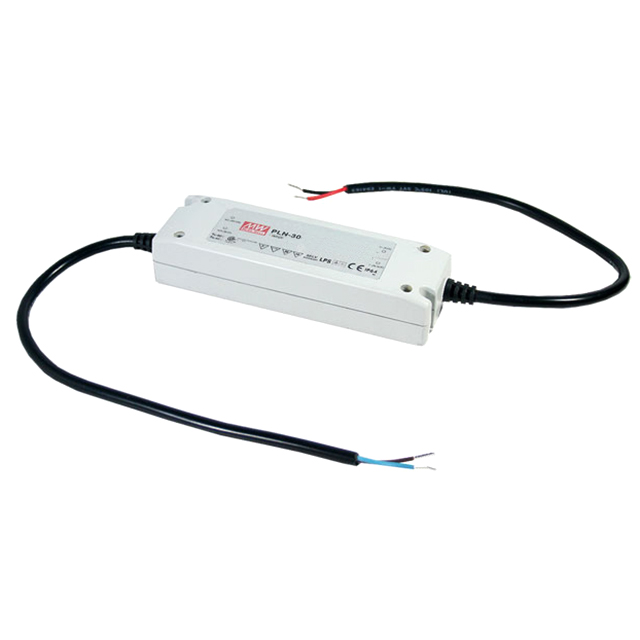

PLN-30-24

MEAN WELL USA Inc.

LED DRVR CC AC/DC 16.8-24V 1.25A

Search across all available documentation for this part.

MEAN WELL USA Inc.

LED DRVR CC AC/DC 16.8-24V 1.25A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Approval Agency	Ratings	Efficiency	Termination Style	Type	Topology	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. PLN-30-9	3750 V	3.3 A	30 mm	5.71 in	47 mm	145 mm	1.85 "	1.18 in	OCP OTP OVP SCP	30 W	295 VAC	90 VAC	50 °C	-30 ░C	Chassis Mount	1	CB cCSAus CE cURus PSE TUV	IP64	80 %	Wire Leads	Constant Current	AC DC Converter	6.3 V	9 V
MEAN WELL USA Inc. PLN-30-15	3750 V	2 A	30 mm	5.71 in	47 mm	145 mm	1.85 "	1.18 in	OCP OTP OVP SCP	30 W	295 VAC	90 VAC	50 °C	-30 ░C	Chassis Mount	1	CB cCSAus CE cURus PSE TUV	IP64	83.5 %	Wire Leads	Constant Current	AC DC Converter	10.5 V	15 V
MEAN WELL USA Inc. PLN-30-24	3750 V	1.25 A	30 mm	5.71 in	47 mm	145 mm	1.85 "	1.18 in	OCP OTP OVP SCP	30 W	295 VAC	90 VAC	50 °C	-30 ░C	Chassis Mount	1	CB cCSAus CE cURus PSE TUV	IP64	84 %	Wire Leads	Constant Current	AC DC Converter	16.8 V	24 V
MEAN WELL USA Inc. PLN-30-20	3750 V	1.5 A	30 mm	5.71 in	47 mm	145 mm	1.85 "	1.18 in	OCP OTP OVP SCP	30 W	295 VAC	90 VAC	50 °C	-30 ░C	Chassis Mount	1	CB cCSAus CE cURus PSE TUV	IP64	84 %	Wire Leads	Constant Current	AC DC Converter	14 V	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.25A 16.8 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
