1741C SL001

Active

ALPHA WIRE

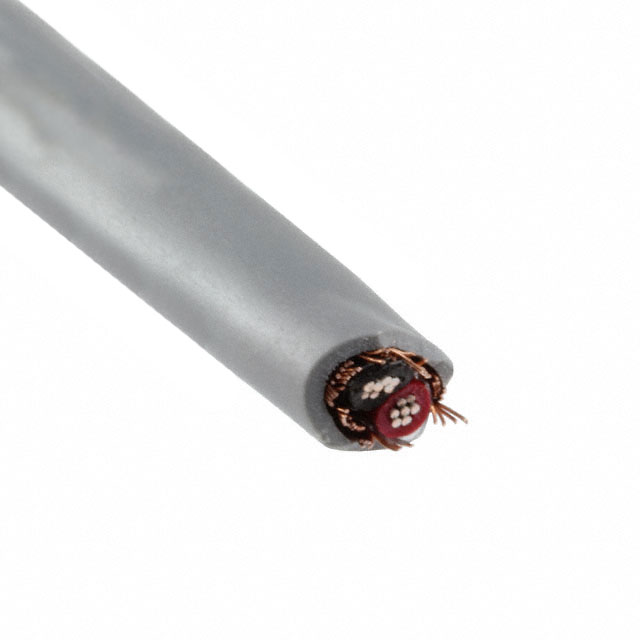

CABLE 2COND 20AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 20AWG SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1741C SL001	1741C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	0.205 in	0.205 in
Jacket (Insulation) Diameter [diameter]	5.21 mm	5.21 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	75 %	75 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 20 AWG, 100 FT, 30.5 M

Part	Usage	Shield Coverage	Voltage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Conductor Insulation	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Shield Material	Length	Length
ALPHA WIRE 1741C SL005	Communication, Control	75 %	300 V	2	0.205 in	5.21 mm	Multi-Conductor	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned	28	7	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Braid	0.02 in	0.508 mm	20 AWG	Copper, Bare
ALPHA WIRE 1741C SL001	Communication, Control	75 %	300 V	2	0.205 in	5.21 mm	Multi-Conductor	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned	28	7			Poly-Vinyl Chloride (PVC)	-20 C	80 C	Braid	0.02 in	0.508 mm	20 AWG	Copper, Bare	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2684.67

General part information

2 Conductor Multi-Conductor Cable Slate 20 AWG Braid 1000.0' (304.8m)
