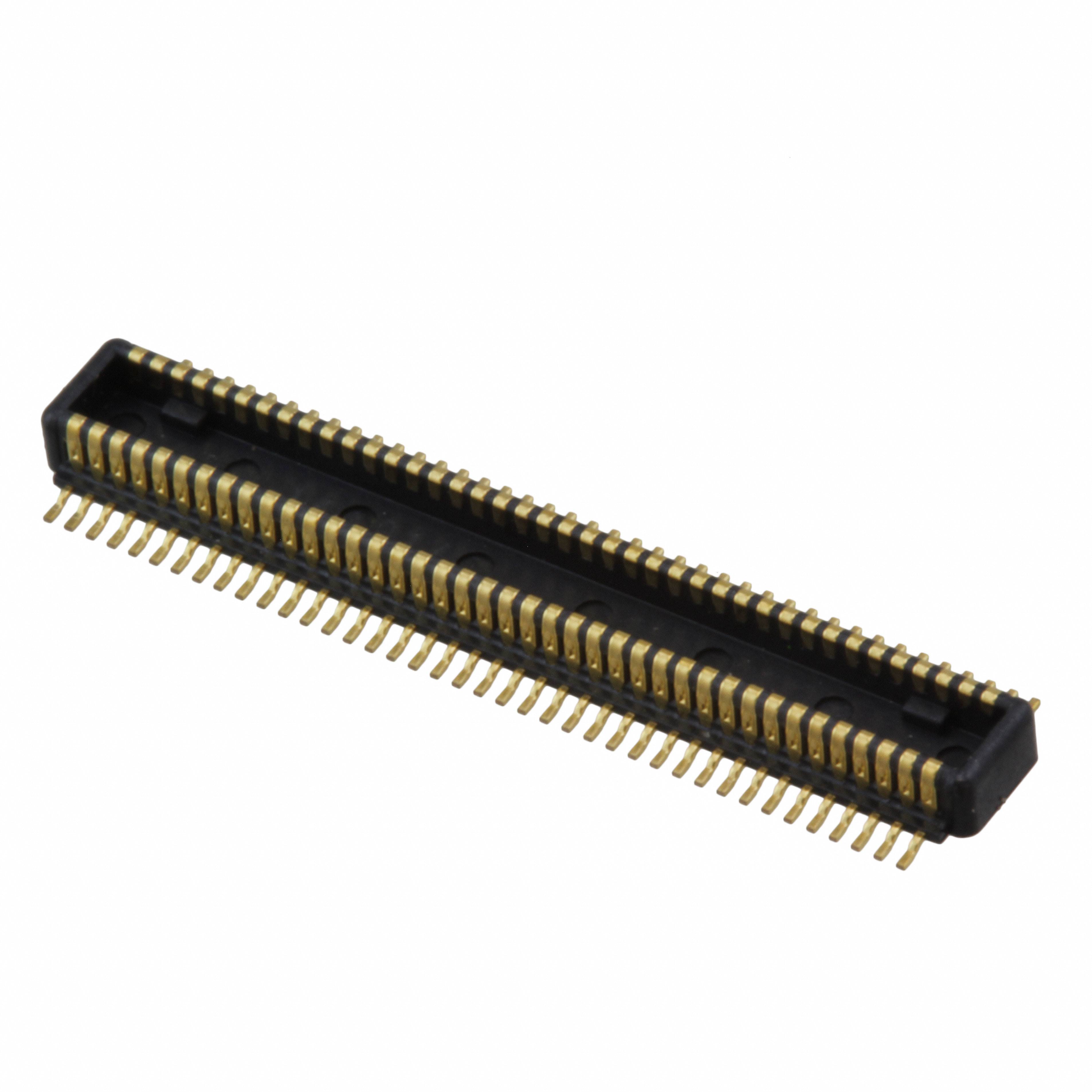

AXK880145WG

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK880145WG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.052 in
Height Above Board	1.32 mm
Mated Stacking Heights	1.5 mm, 2 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Connector Type	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Contact Finish
Panasonic Electric Works AXK880145WA	1.5 mm 2 mm 2.5 mm	Header Outer Shroud Contacts	2	80	0.016 in	0.4 mm	Surface Mount	0.052 in	1.32 mm	Gold
Panasonic Electric Works AXK880145WG	1.5 mm 2 mm 2.5 mm	Header Outer Shroud Contacts	2	80	0.016 in	0.4 mm	Surface Mount	0.052 in	1.32 mm	Gold
