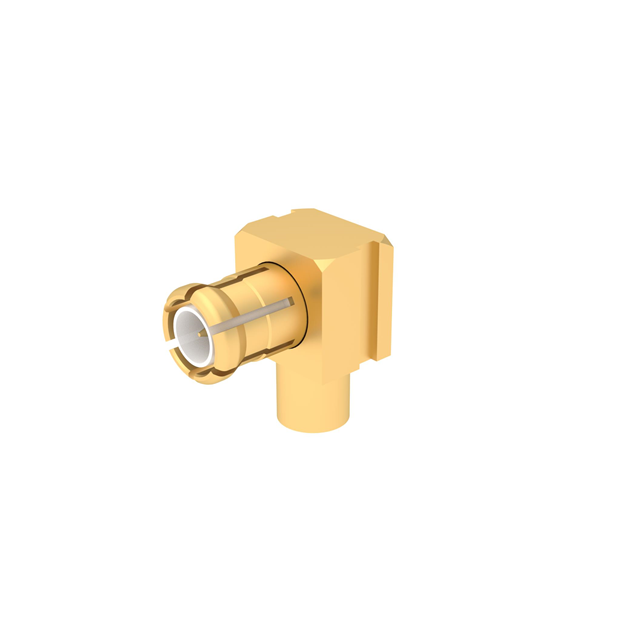

R113161000

Active

Radiall USA, Inc.

MCX M RA SD 2/50 2.6/50 C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX M RA SD 2/50 2.6/50 C100

Technical Specifications

Parameters and characteristics for this part

Specification	R113161000

Body Finish	Gold
Body Material	Brass
Cable Group	178, RG-174, RG-405
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Contact, 1 Insulator, 1 End Cap, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Shield Termination	Mounting Type	Center Contact Material	Body Material	Connector Style	Cable Group	Mating Cycles	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Dielectric Material	Connector Type	Fastening Type	Frequency - Max [Max]	Housing Color	Center Contact Plating	Body Finish	Contact Termination	Number of Ports	Voltage Rating
Radiall USA, Inc. R113161000	Solder	Free Hanging (In-Line) Right Angle	Brass	Brass	MCX	178 RG-174 RG-405	500	1 Connector 1 Contact 1 End Cap 1 Insulator	115 °C	-55 °C	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Snap-On	6000 MHz	Gold	Gold	Gold	Solder	1	170 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
