010832CD150

Active

Essentra Components

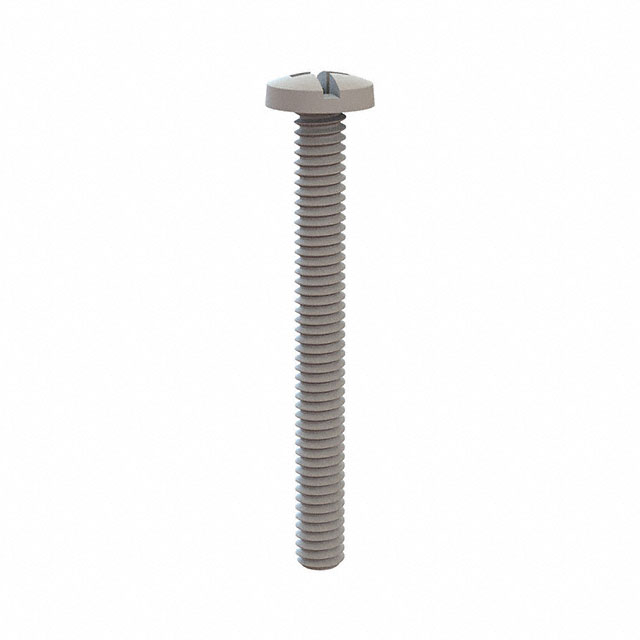

BINDER COMBINATION SCREW 8-32

Search across all available documentation for this part.

Active

Essentra Components

BINDER COMBINATION SCREW 8-32

Technical Specifications

Parameters and characteristics commom to parts in this series

MACH SCREW BINDING COMBO #8-32

Part	Drive Type	Head Height	Head Height	Type	Head Diameter [diameter]	Head Diameter [diameter]	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Length - Overall [x]	Length - Overall [x]	Material	Screw Head Type	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head	Length - Below Head	Length - Overall	Length - Overall	Length - Below Head
Essentra Components 010832CD137	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in	34.93 mm	1.375 in	#8-32	1.575 "	40.01 mm	Nylon	Binding Head
Essentra Components 010832CD043	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in			#8-32			Nylon	Binding Head	0.438 in	11.11 mm
Essentra Components 010832CD100	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in			#8-32	1.2 in	30.48 mm	Nylon	Binding Head			25.4 mm	1 in
Essentra Components 010832CD150	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in		1.5 in	#8-32			Nylon	Binding Head			38.1 mm		43.18 mm	1.7 in
Essentra Components 010832CD062	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in			#8-32			Nylon	Binding Head			15.88 mm	0.625 in	20.96 mm	0.825 in	0.625 in
Essentra Components 010832CD200	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in	50.8 mm	2 in	#8-32	2.2 in	55.88 mm	Nylon	Binding Head
Essentra Components 010832CD025	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in			#8-32	0.45 in	11.43 mm	Nylon	Binding Head			6.35 mm	0.25 in			0.25 in
Essentra Components 010832CD087	Combination	0.2 in	5.08 mm	Machine Screw	8.51 mm	0.335 in		0.875 in	#8-32	1.075 in	27.31 mm	Nylon	Binding Head			0.875 in				22.23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.06

General part information

#8-32 Binding Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
