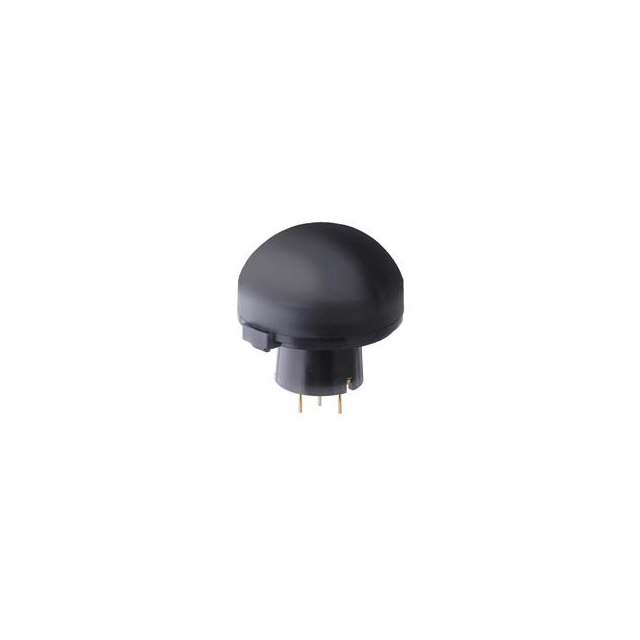

EKMB4303112K

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL BLACK

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	EKMB4303112K

Features	Black, Long Distance Lens
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	17 m
Sensing Distance	55.8 ft
Sensing Distance	669 in
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	4 V
Voltage - Supply [Min]	2.3 V

Part	Sensor Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Sensing Distance	Sensing Distance	Sensing Distance	Package / Case	Trigger Type
Panasonic Electric Works EKMB4303111K	Motion PIR (Passive Infrared) Pyroelectric	-20 C	60 °C	4 V	2.3 V	Long Distance Lens White	17 m	55.8 ft	669 in	Module	Internal
Panasonic Electric Works EKMB4303112K	Motion PIR (Passive Infrared) Pyroelectric	-20 C	60 °C	4 V	2.3 V	Black Long Distance Lens	17 m	55.8 ft	669 in	Module	Internal
Panasonic Electric Works EKMB4303113K	Motion PIR (Passive Infrared) Pyroelectric	-20 C	60 °C	4 V	2.3 V	Long Distance Lens Pearl White	17 m	55.8 ft	669 in	Module	Internal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 669" (17m) 55.8' Long Distance Lens, Black Module
