XVUC9S

Active

Schneider Electric

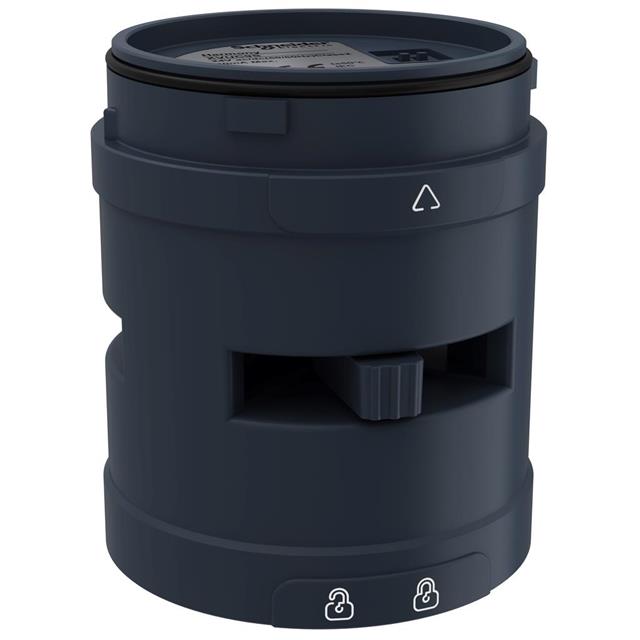

BUZZER, HARMONY XVU, CONTINUOUS, INTERMITTENT, 85DB, 2.635KHZ, 24VDC, 24VAC, 70MA, IP54

Search across all available documentation for this part.

Active

Schneider Electric

BUZZER, HARMONY XVU, CONTINUOUS, INTERMITTENT, 85DB, 2.635KHZ, 24VDC, 24VAC, 70MA, IP54

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Acoustic Element Wire Leads

Technical documentation and resources

Specification	XVUC9S	XVUC9 Series

Features	-	Adjustable Volume
Function - Audible	Pulse, Continuous	Continuous, Pulse
Function - Lighting	-	Steady
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 - -20 C
Termination Style	Wire Leads	Wire Leads
Type	Acoustic Element	Acoustic Element, Complete Unit
Voltage - Supply	24 VAC	24 VAC
Weight	0.17 lb	0.17 - 0.48 lb
Weight	77.11 g	77.11 - 217.72 g

Part	Ingress Protection	Voltage - Supply	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Function - Audible	Features	Weight	Weight	Type	Function - Lighting
Schneider Electric XVUC9V	IP54 - Dust Protected, Water Resistant	24 VAC	Wire Leads	50 °C	-20 C	Continuous	Adjustable Volume	217.72 g	0.48 lb	Acoustic Element
Schneider Electric XVUC9VP	IP54 - Dust Protected, Water Resistant	24 VAC	Wire Leads	50 °C	-20 C			217.72 g	0.48 lb	Complete Unit	Steady
Schneider Electric XVUC9SQ	IP54 - Dust Protected, Water Resistant	24 VAC	Wire Leads	50 °C	-25 °C	Continuous, Pulse				Acoustic Element
Schneider Electric XVUC9S	IP54 - Dust Protected, Water Resistant	24 VAC	Wire Leads	50 °C	-25 °C	Continuous, Pulse		77.11 g	0.17 lb	Acoustic Element
