General part information

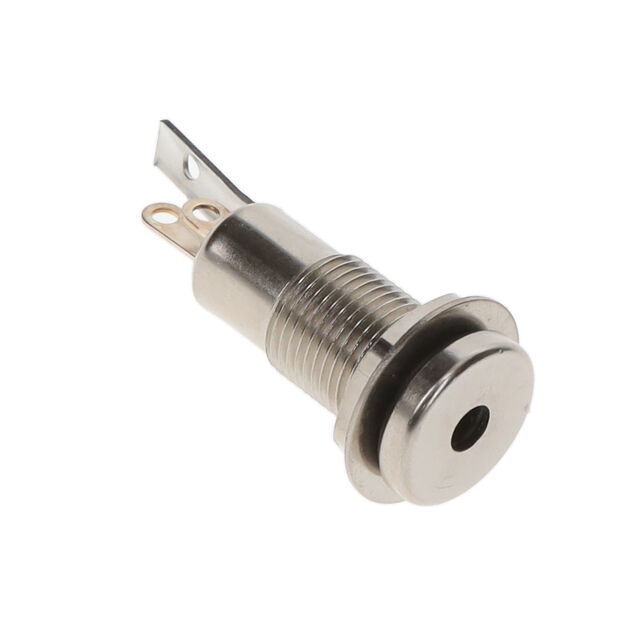

Phone Connectors 3.5MM JACK ASSM FRONT PANEL MOUNT
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 35FM3S |
|---|---|
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Beryllium Copper |
| Contact Material - Plating [custom] | Silver |
| Gender | Female |
| Housing Material | Copper Alloy |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Panel Hole Size | 9.91 mm |
| Panel Hole Size | 0.39 in |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
| Thread Size | 3/8"-32 |
Phone Connectors 3.5MM JACK ASSM FRONT PANEL MOUNT
| Part | Signal Lines | Contact Material - Plating [custom] | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Gender | Body Color | Body Material | Housing Material | Termination | Panel Hole Size | Panel Hole Size | Shielding | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Mounting Type | Internal Switch(s) | Thread Size | Connector Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35FM3S | Stereo | Silver | 0.141 " | 0.125 " | 3.5 mm | Female | Silver | Brass | Copper Alloy | Solder Eyelet(s) | 9.91 mm | 0.39 in | Unshielded | 3 | 3 | Panel Mount, Through Hole | 3/8"-32 | Phone Jack | Beryllium Copper |
