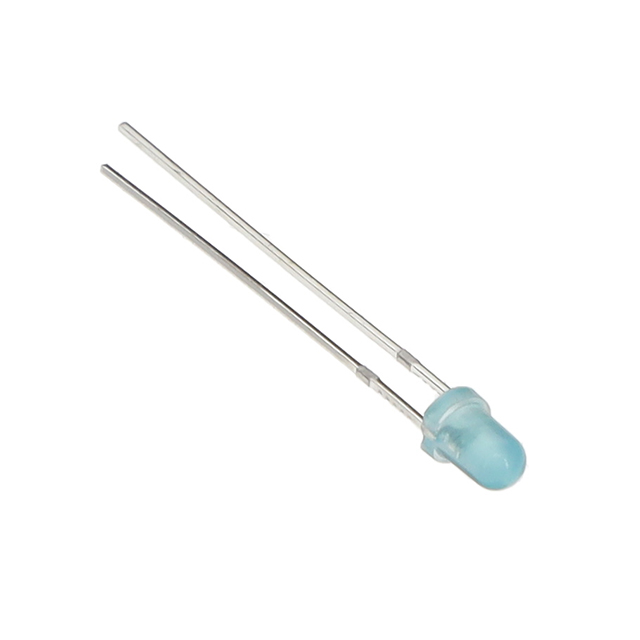

3BWD-F
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, BLUE, 430NM, 10MCD, DIFFUSED LENS, 35 DEG VIEWING ANGLE, FLANGED / BAG
3BWD-F
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, BLUE, 430NM, 10MCD, DIFFUSED LENS, 35 DEG VIEWING ANGLE, FLANGED / BAG
Description
General part information
3BWD-F Series
Blue LED Indication - Discrete 4V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 3BWD-F |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 5.3 mm |
| Lens Color | Blue |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 4 V |
| Wavelength - Peak | 430 nm |
