110IMX35D12D12-8G

Active

Bel Power Solutions

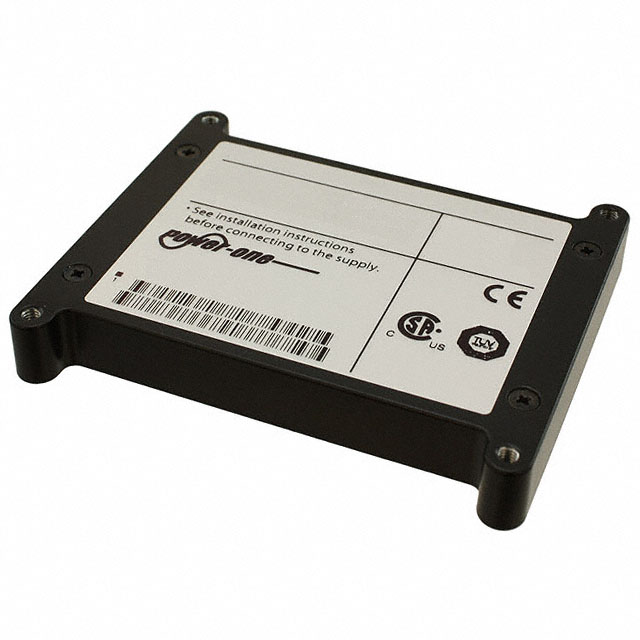

DC DC CONVERTER 12V 12V 12V 35W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 12V 12V 35W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module, Conformal Coated DC DC Converter 4 Output 12V 12V 12V 700mA, 700mA, 700mA 60V - 150V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	110IMX35D12D12-8G	110IMX35 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Current - Output (Max)	700 mA	1.4 - 700 mA
Current - Output (Max)	-	600 mA
Current - Output (Max)	-	600 mA
Efficiency	88 %	88 %
Features	OCP, UVLO, OTP, SCP	OCP, UVLO, OTP, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	19-DIP Module	19-DIP Module, 19-DIP Module, 17 Leads
Power (Watts)	35 W	35 W
Size / Dimension [x]	3 "	3 "
Size / Dimension [x]	76.2 mm	76.2 mm
Size / Dimension [y]	63.5 mm	63.5 mm
Size / Dimension [y]	2.5 in	2.5 in
Size / Dimension [z]	10.5 mm	10.5 mm
Size / Dimension [z]	0.41 "	0.41 "
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	150 V	150 V
Voltage - Input (Min) [Min]	60 V	60 V
Voltage - Isolation	2500 V	2500 V
Voltage - Output 1	12 V	5 - 15 V
Voltage - Output 2	12 V	12 - 15 V
Voltage - Output 3	12 V	12 - 15 V

DC DC CONVERTER 12V 12V 12V 35W

Part	Features	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Number of Outputs	Package / Case	Type	Power (Watts)	Voltage - Output 1	Current - Output (Max)	Voltage - Output 3	Voltage - Input (Min) [Min]	Voltage - Isolation	Efficiency	Current - Output (Max)	Current - Output (Max)
Bel Power Solutions 110IMX35D12D12-8G	OCP, OTP, SCP, UVLO	12 V	85 °C	-40 °C	ITE (Commercial), Railway	Through Hole	3 "	63.5 mm	2.5 in	10.5 mm	0.41 "	76.2 mm	150 V	4	19-DIP Module	Conformal Coated, Isolated Module	35 W	12 V	700 mA	12 V	60 V	2500 V	88 %
Bel Power Solutions 110IMX35D05D15-8G	OCP, OTP, OVP, SCP, UVLO	15 V	85 °C	-40 °C	ITE (Commercial), Railway	Through Hole							150 V	4	19-DIP Module, 17 Leads	Conformal Coated, Isolated Module	35 W	5 V	1.4 A	15 V	60 V	2500 V	88 %	600 mA	600 mA
Bel Power Solutions 110IMX35D05D15-8	OCP, OTP, OVP, SCP, UVLO	15 V	85 °C	-40 °C	ITE (Commercial), Railway	Through Hole	3 "	63.5 mm	2.5 in	10.5 mm	0.41 "	76.2 mm	150 V	4	19-DIP Module, 17 Leads	Conformal Coated, Isolated Module	35 W	5 V	1.4 A	15 V	60 V	2500 V	88 %	600 mA	600 mA
Bel Power Solutions 110IMX35D15D15-8G	OCP, OTP, SCP, UVLO	15 V	85 °C	-40 °C	ITE (Commercial), Railway	Through Hole	3 "	63.5 mm	2.5 in	10.5 mm	0.41 "	76.2 mm	150 V	4	19-DIP Module	Conformal Coated, Isolated Module	35 W	15 V	600 mA	15 V	60 V	2500 V	88 %
