JP-33674-J

Active

Mueller Electric Co

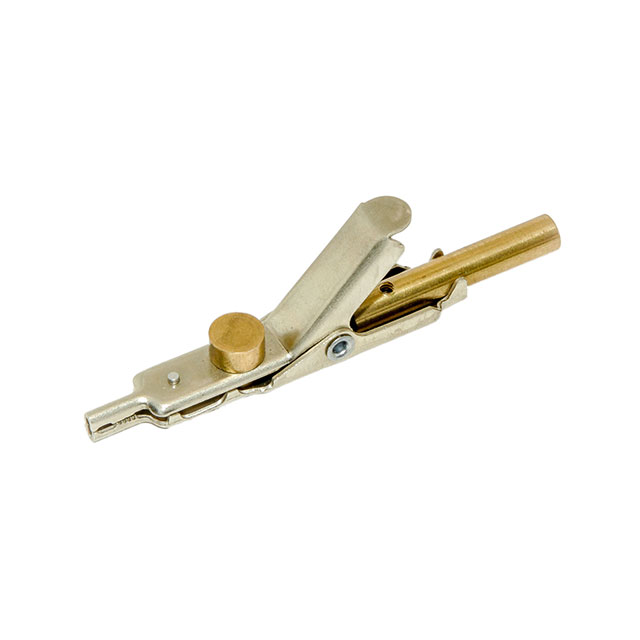

TEST CLIP, LARGE, STRAIGHT JAW, BED OF NAILS, SPIKE & BANANA JACK

Search across all available documentation for this part.

Active

Mueller Electric Co

TEST CLIP, LARGE, STRAIGHT JAW, BED OF NAILS, SPIKE & BANANA JACK

Technical Specifications

Parameters and characteristics for this part

Part	Type	Jaw Opening	Jaw Opening	Length	Length	Material	Color	Termination	Plating	Insulation	Quantity
Mueller Electric Co JP-33674-J	Telecom	1 in	25.4 mm	2.61 in	66.29 mm	Silver	Natural	Banana Female Socket (Jack)	Nickel	Non-Insulated	1 Box
Mueller Electric Co JP-33674-N	Telecom	1 in	25.4 mm	2.61 in	66.29 mm	Silver	Natural	Crimp or Screw	Nickel	Non-Insulated	1 Box
Mueller Electric Co JP-33674-TJ	Telecom	1 in	25.4 mm	2.61 in	66.29 mm	Silver	Natural	Banana Female Socket (Jack)	Nickel	Non-Insulated	1 Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Insulated Telecom Test Clip Silver 1.000" (25.40mm)

Technical documentation and resources
