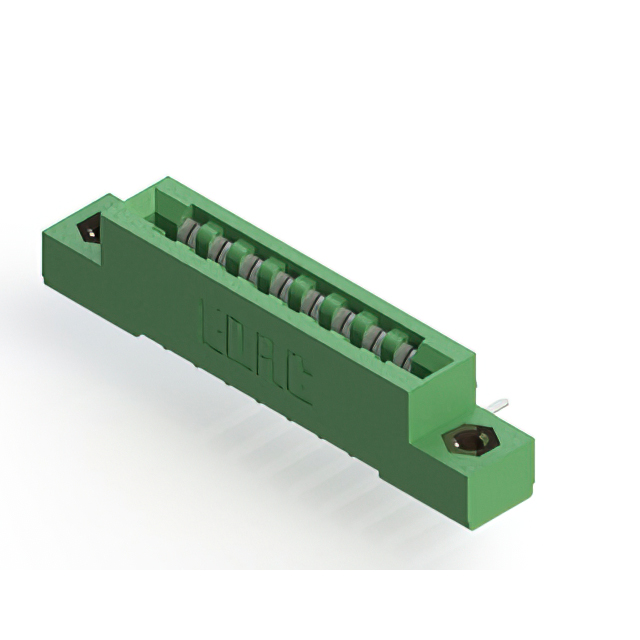

807-008-457-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-008-457-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-008-457-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
807-008 Series
...
| Part | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Gender | Flange Feature | Flange Feature | Flange Feature | Termination Rows | Contact Finish | Contact Material | Number of Rows | Mounting Type | Material - Insulation | Number of Positions | Color | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | 125 °C | -40 °C | Non Specified - Single Edge | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1 | Tin | Copper Alloy | 1 | Through Hole | Diallyl Phthalate (DAP) | 8 | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | |||||
EDAC Inc. | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Tin | Copper Alloy | 2 | Through Hole Right Angle | Diallyl Phthalate (DAP) | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 16 | |||||||
EDAC Inc. | Single | 125 °C | -40 °C | Non Specified - Single Edge | Female | Flush Mount Top Opening Unthreaded | 1 | Gold | Copper Alloy | 1 | Through Hole | Diallyl Phthalate (DAP) | 8 | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Single | 125 °C | -40 °C | Non Specified - Single Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 1 | Gold | Copper Alloy | 1 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 8 | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1 | Tin | Copper Alloy | 2 | Through Hole Right Angle | Diallyl Phthalate (DAP) | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 16 | |||||
EDAC Inc. | Single | 125 °C | -40 °C | Non Specified - Single Edge | Female | Floating Bobbin Flush Mount | 1 | Gold | Copper Alloy | 1 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 8 | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.95 mm | 0.116 in | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Single | 125 °C | -40 °C | Non Specified - Single Edge | Female | 1 | Gold | Copper Alloy | 1 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 8 | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Flush Mount Top Opening Unthreaded | 1 | Tin | Copper Alloy | 2 | Through Hole Right Angle | Diallyl Phthalate (DAP) | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 16 | 3.96 mm | 0.156 in | |||||
EDAC Inc. | Single | 125 °C | -40 °C | Non Specified - Single Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 1 | Gold | Copper Alloy | 1 | Through Hole | Diallyl Phthalate (DAP) | 8 | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Floating Bobbin Flush Mount | 1 | Tin | Copper Alloy | 2 | Through Hole Right Angle | Diallyl Phthalate (DAP) | Green | Semi Bellows | 8 | 8 | 8 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 16 | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
807-008 Series
16 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
