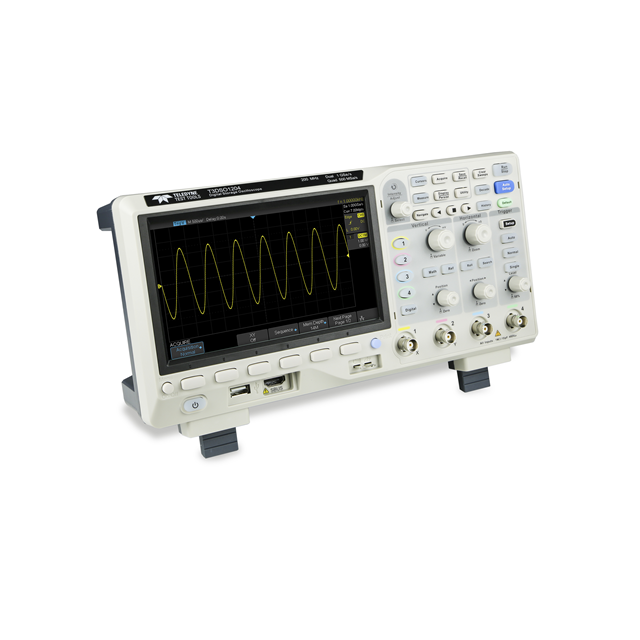

T3DSO1104

Active

Teledyne LeCroy

DIGITAL OSCILLOSCOPE, T3DSO1000 SERIES, 4 CHANNEL, 100 MHZ, 1 GSPS, 14 MPTS, 3.5 NS

Search across all available documentation for this part.

Active

Teledyne LeCroy

DIGITAL OSCILLOSCOPE, T3DSO1000 SERIES, 4 CHANNEL, 100 MHZ, 1 GSPS, 14 MPTS, 3.5 NS

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Channels	Input Impedance	Bandwidth	Type	Memory Size	Voltage - Input (Max) [Max]	Sampling Rate (Per Second)	Display Type	Rise Time (Typ)	Includes	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Accessory Type	Voltage - Input (Max)
Teledyne LeCroy T3DSO2202	RS232 USB	2 Analog	1 M	200 MHz	Bench Digital	140 Mpts	240 V	2 G	LCD - Color	1.7 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC
Teledyne LeCroy T3DSO2302	RS232 USB	2 Analog	1 M	300 MHz	Bench Digital	140 Mpts	240 V	2 G	LCD - Color		Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC
Teledyne LeCroy T3DSO2104A	RS232 USB	4 Analog	1 M	100 MHz	Bench Digital	140 Mpts	240 V	2 G	LCD - Color	1 ns	Power Cord USB Adapter/Cable	Record	100 VAC	240 VAC
Teledyne LeCroy T3DSO1000-FG					Oscilloscope										Oscilloscopes: T3DSO1000	Software
Teledyne LeCroy T3DSO1000-LS					General Purpose
Teledyne LeCroy T3DSO1104	RS232 USB	4 Analog	1 M	100 MHz	Bench Digital	28 Mpts		1 G	LCD - Color	3.5 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC			240 V
Teledyne LeCroy T3DSO1000-MSO					Oscilloscope										Oscilloscopes: T3DSO1000	Software
Teledyne LeCroy T3DSO2000A-I2S
Teledyne LeCroy T3DSO1102	RS232 USB	2 Analog	1 M	100 MHz	Bench Digital	14 Mpts		1 G	LCD - Color	3.5 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC			240 V
Teledyne LeCroy T3DSO2104	RS232 USB	4 Analog	1 M	100 MHz	Bench Digital	280 Mpts	240 V	2 G	LCD - Color	3.5 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 960.00

General part information

100 MHz Bench, Digital Oscilloscopes RS232, USB Interface LCD - Color Display 4 Analog Channel CAT II 240V Record, Trend
